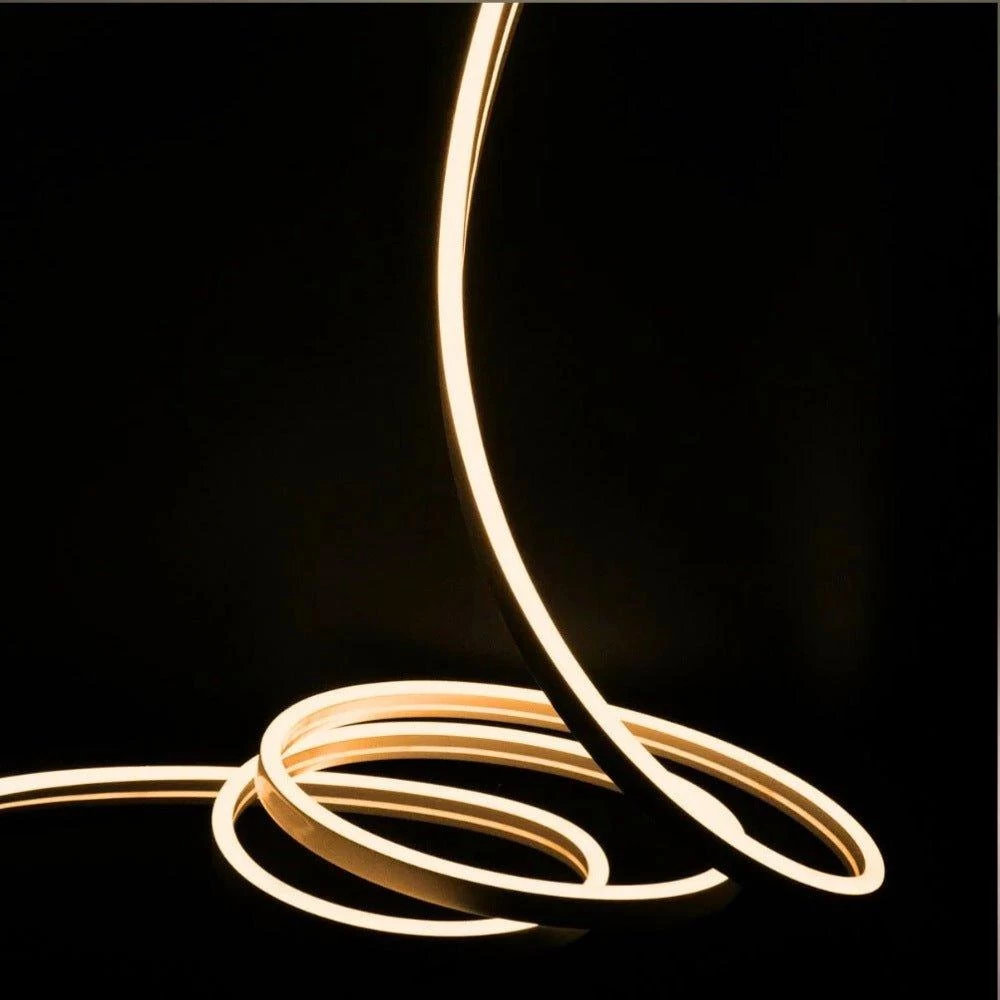

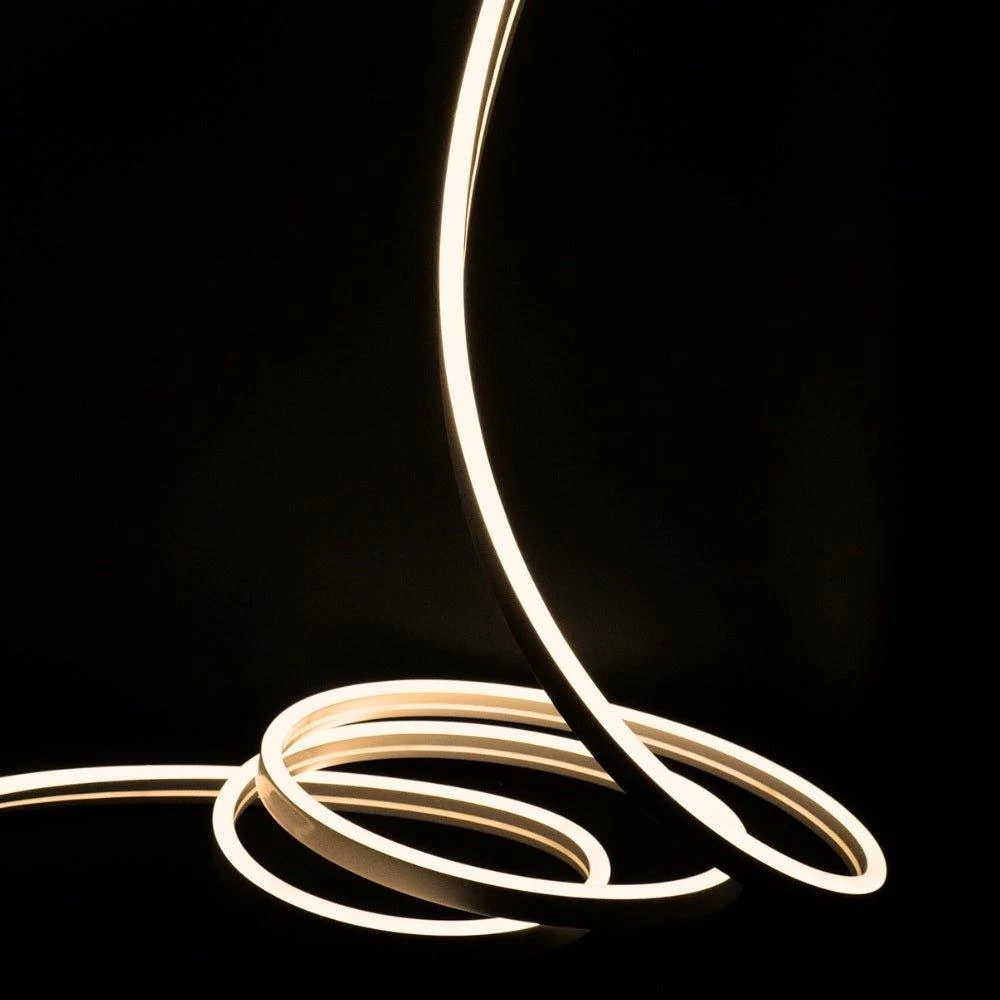

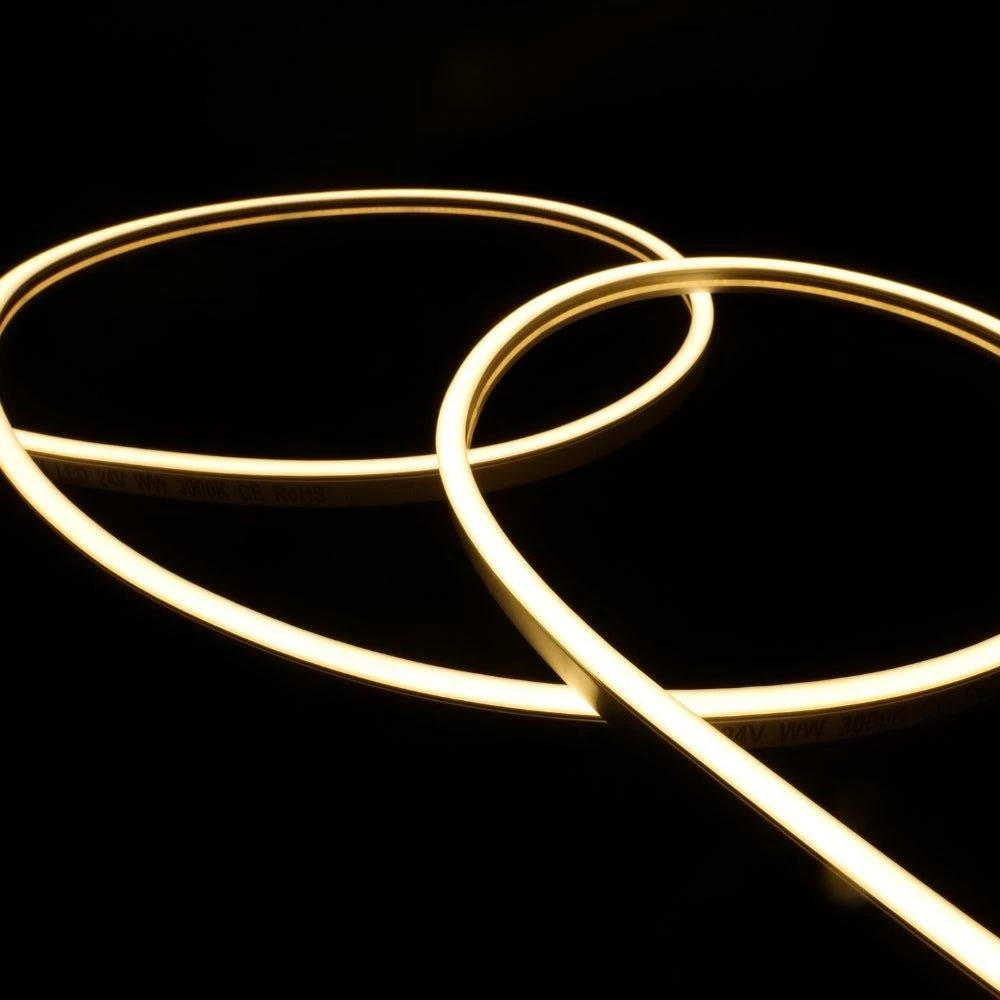

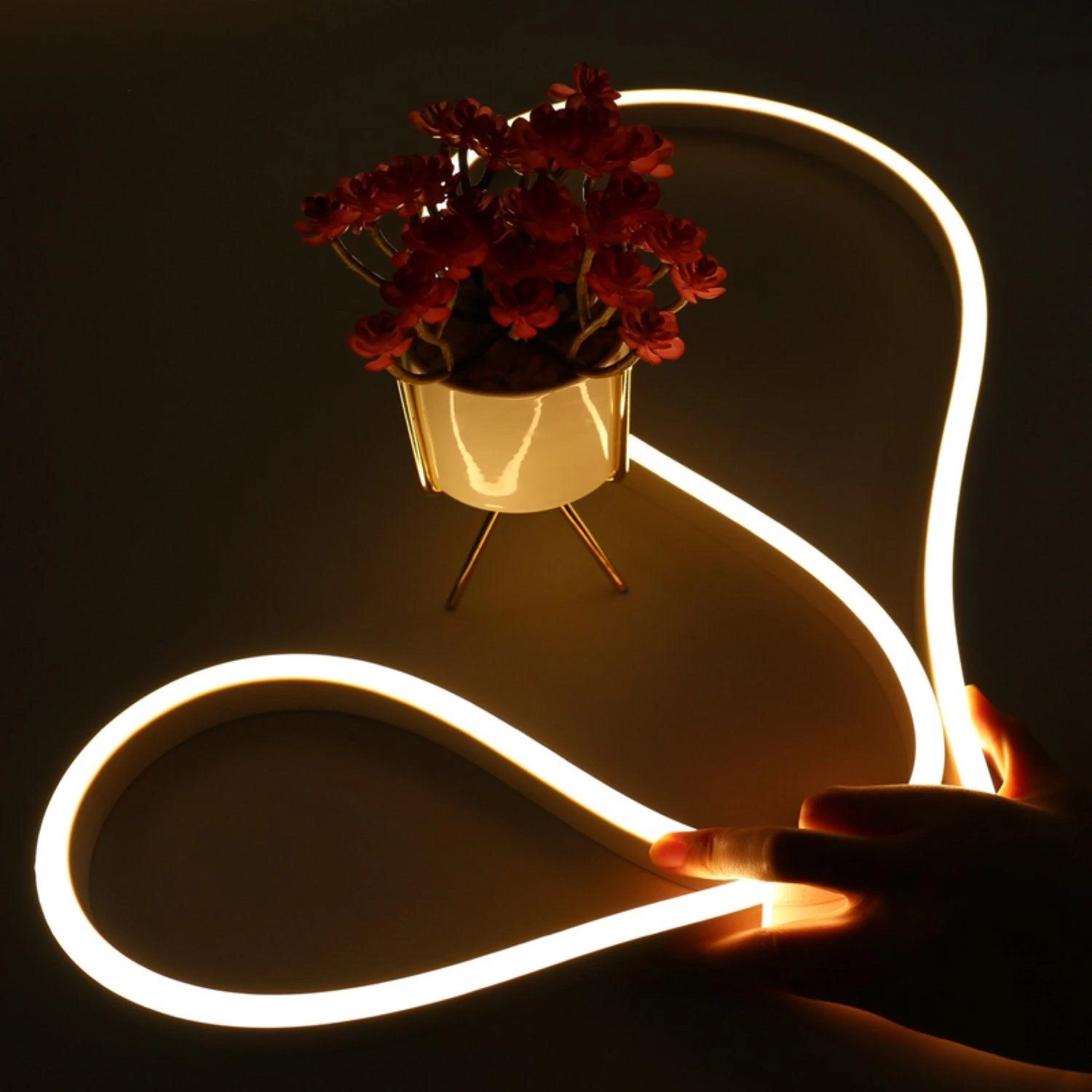

ATOM LED Warm White Neon Flex 24V 8x16mm 120LEDs/m IP65 Waterproof 5cm Cut

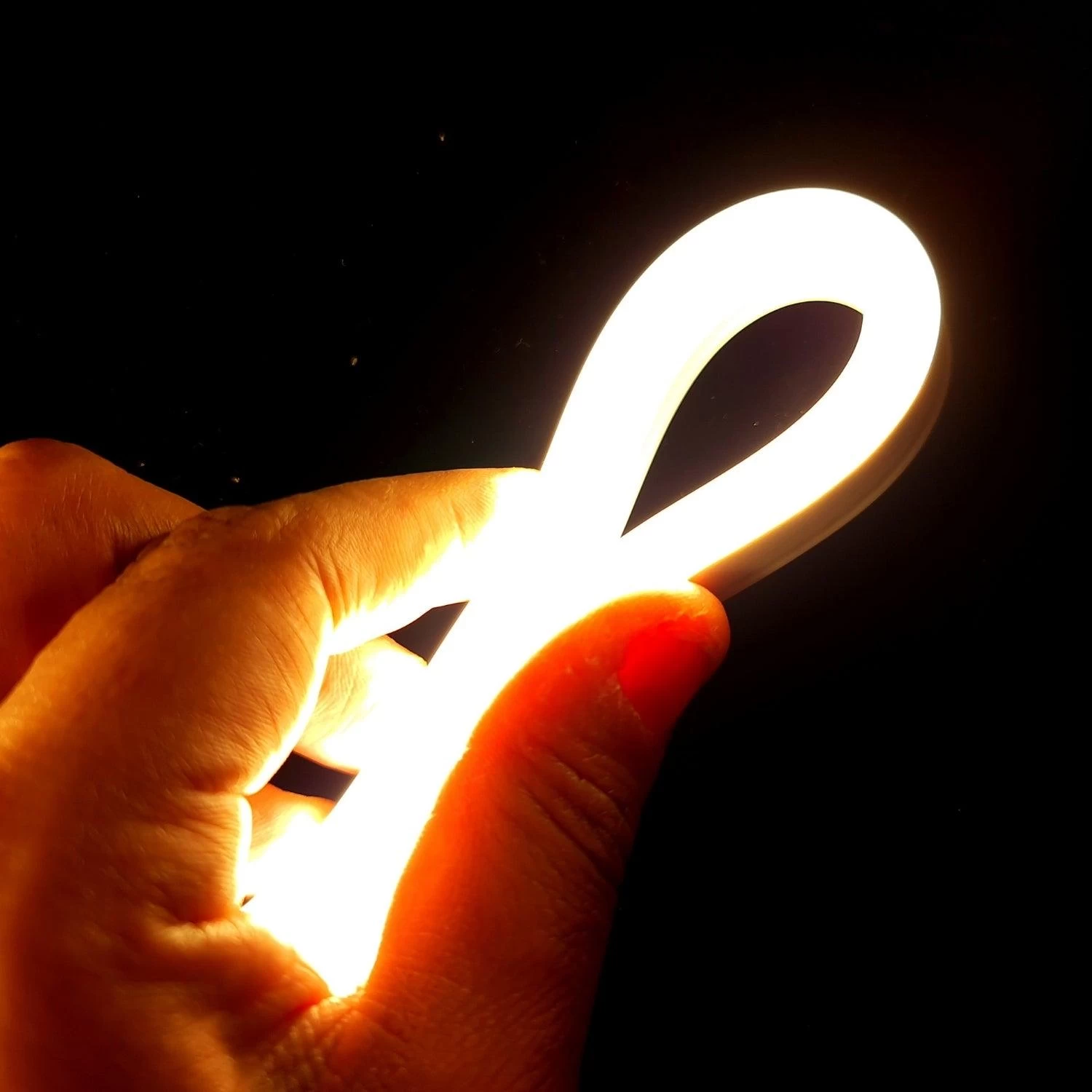

Our 8x16mm Neon Flex is a high-quality lighting solution with a silicone outer casing which means it is both durable and flexible and allows it to easily fit into a correctly sized routed groove, making for a flush, seamless finish to your installation.

Neon Flex is a durable fully diffused linear light perfect for indoor installations. This neon can be cut easily to your desired lengths at the allocated cut points every 5cm (50mm). Maximum length at any time is 15 metres without any voltage drop and one side power, which can be extended to 30 metre if powered from both ends.

With its vibrant neon glow, this micro flex adds a touch of personality and style to any furniture piece. It is low voltage and energy-efficient, making it both safe and cost-effective to use.

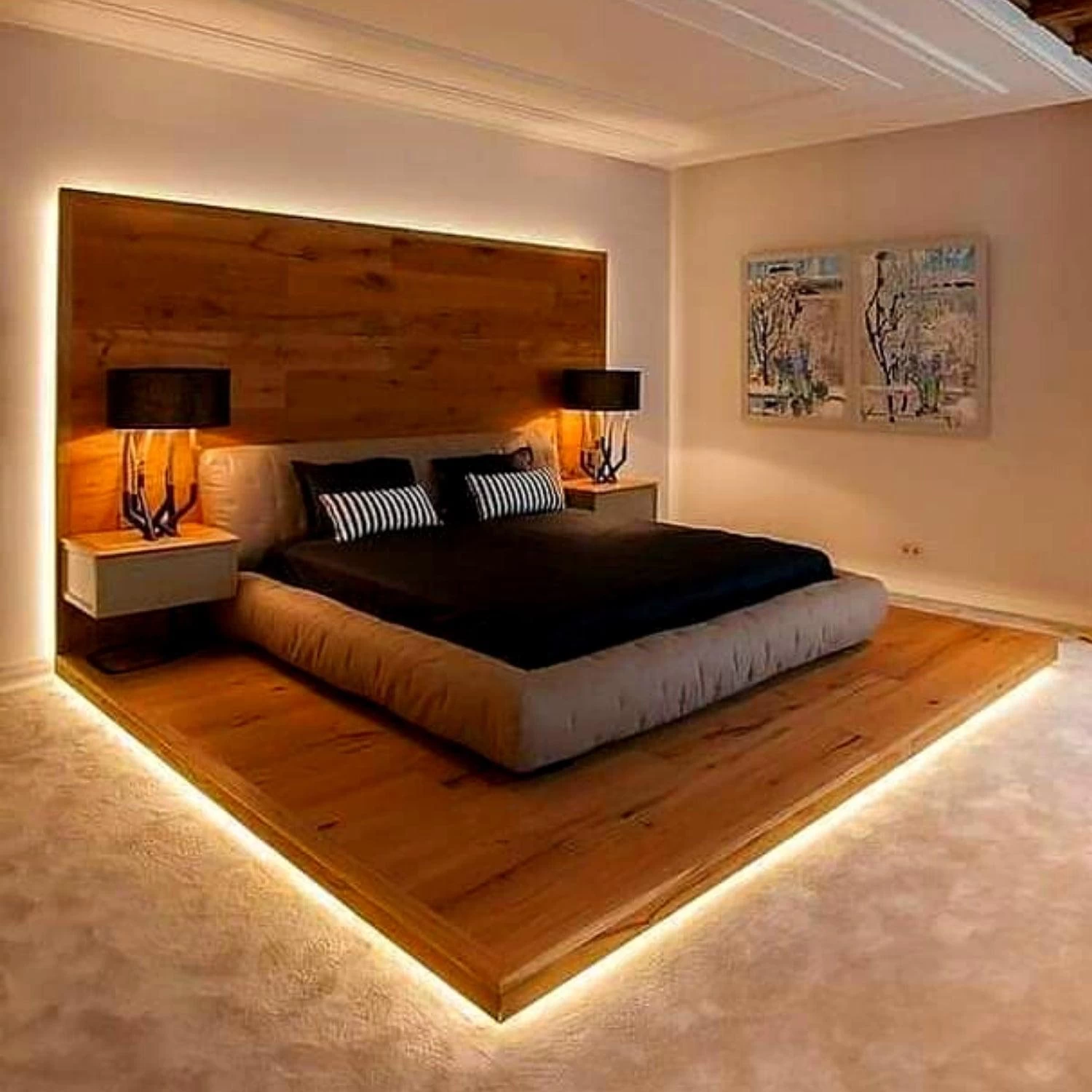

Whether you’re looking to light up a kitchen counter, coving, accent a bookshelf, or brighten up a bathroom mirror, the 8x16mm Neon Flex is the perfect choice for all your indoor lighting needs.

A 24V Driver is required to power LED Neon Flex. Each metre of Neon Flex requires 9 watts, so choose a driver powerful enough to supply the total wattage required. Please do not use the power supply to its full capacity, always leave at least 10% capacity.

Neon Flex can be dimmed via mains dimming, DALI, DMX, RF controllers.

Our 8×16 Micro Neon Flex comes with a 3 year guarantee as standard on indoor installations and 6 months on outdoor installations.

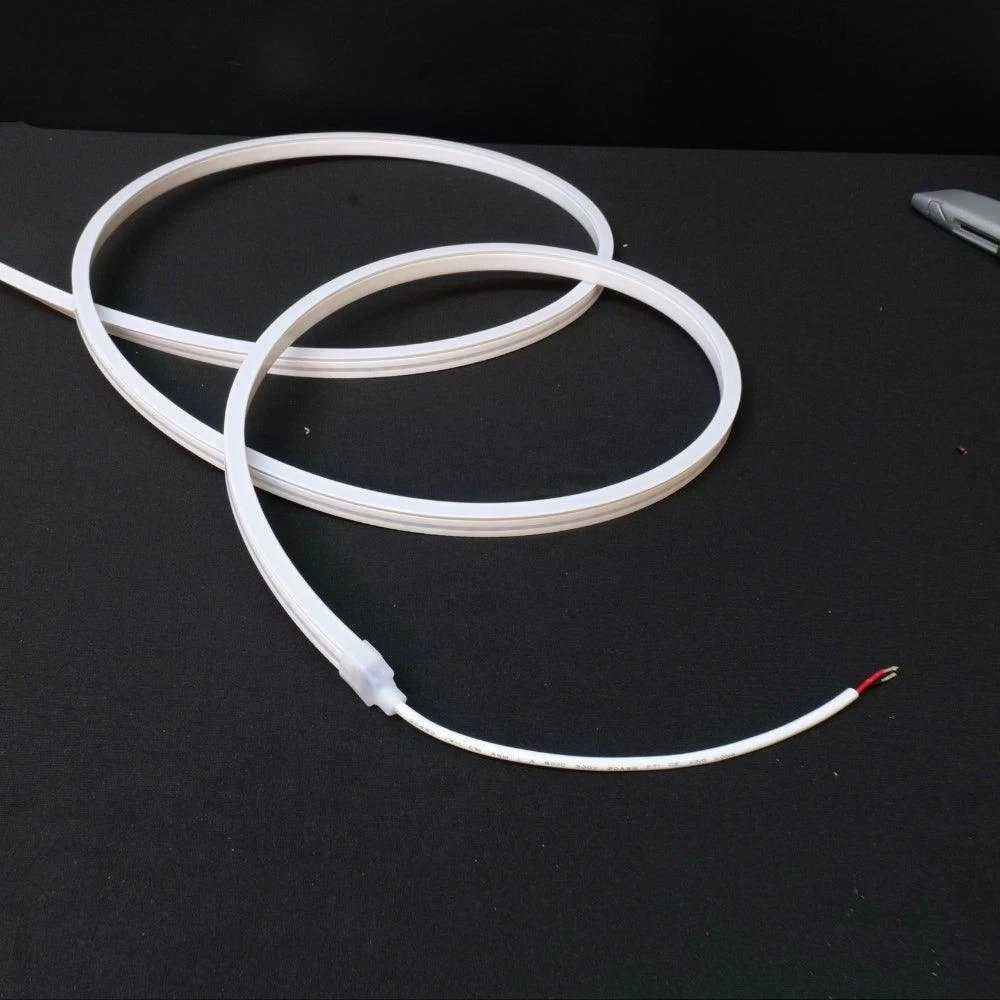

For outdoor use silicone sealant with end cap and heat shrink is used on the tail end of the LED Neon Flex. Incorrect Ingress Protection will void the warranty.

Power Consumption: 9 W/ Metre

Upto 5 Metre Length : DC 24V 60W
Upto 8 Metre Length: DC 24V 100W
Upto 10 Metre Length: DC 24V 120W
Upto 15 Metre Length: DC 24V 200W

Specification:

• Voltage: 24V

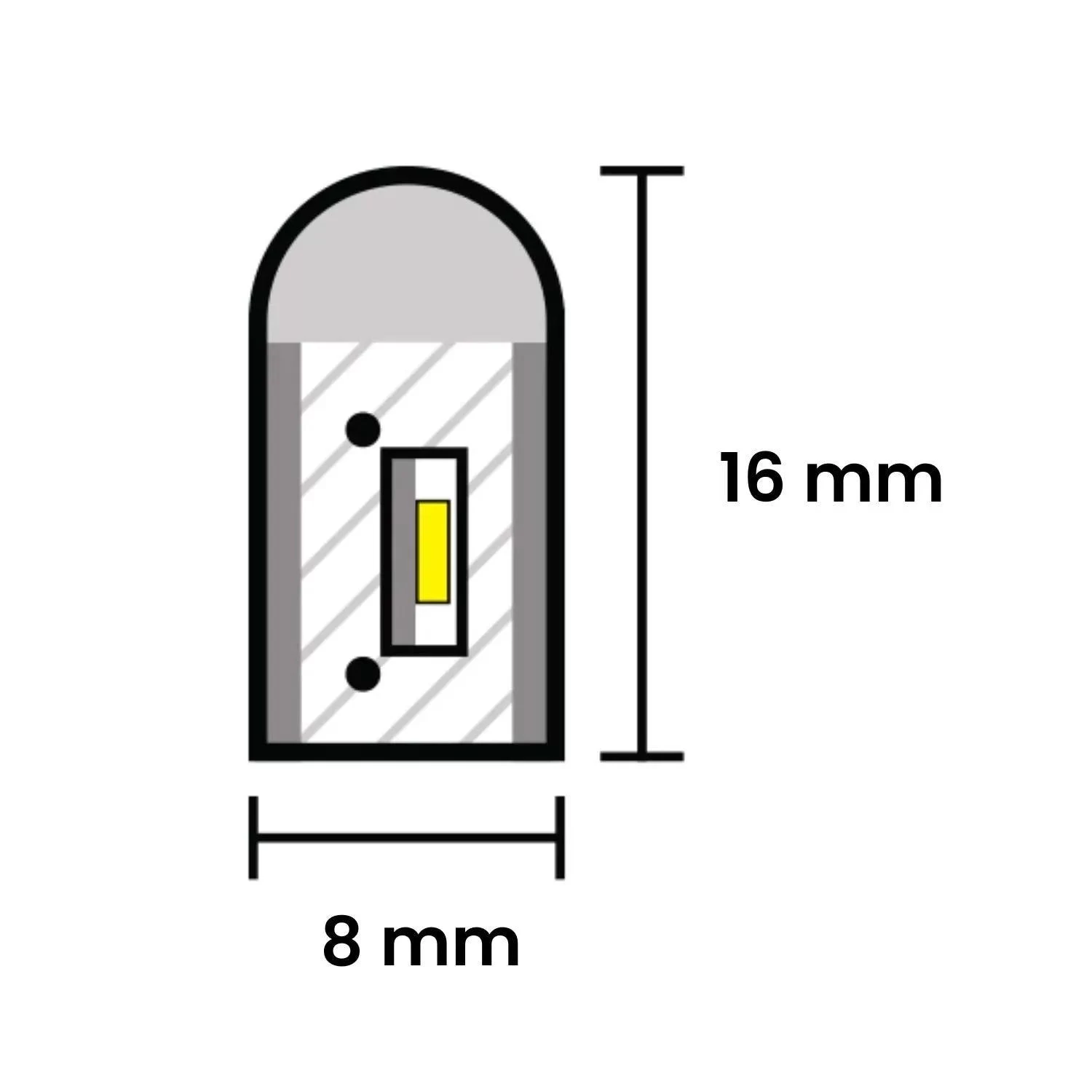

• Dimensions – 8mm x 16mm
• LED Type – 2835
• Unit/Cut Length – 5cm (50mm)
• Max Load – 15m
• Power – 9W Per Metre
• Lumens – 470 Per Metre
• CRI – >80
• IP Rating – IP65 subject to correct installation.

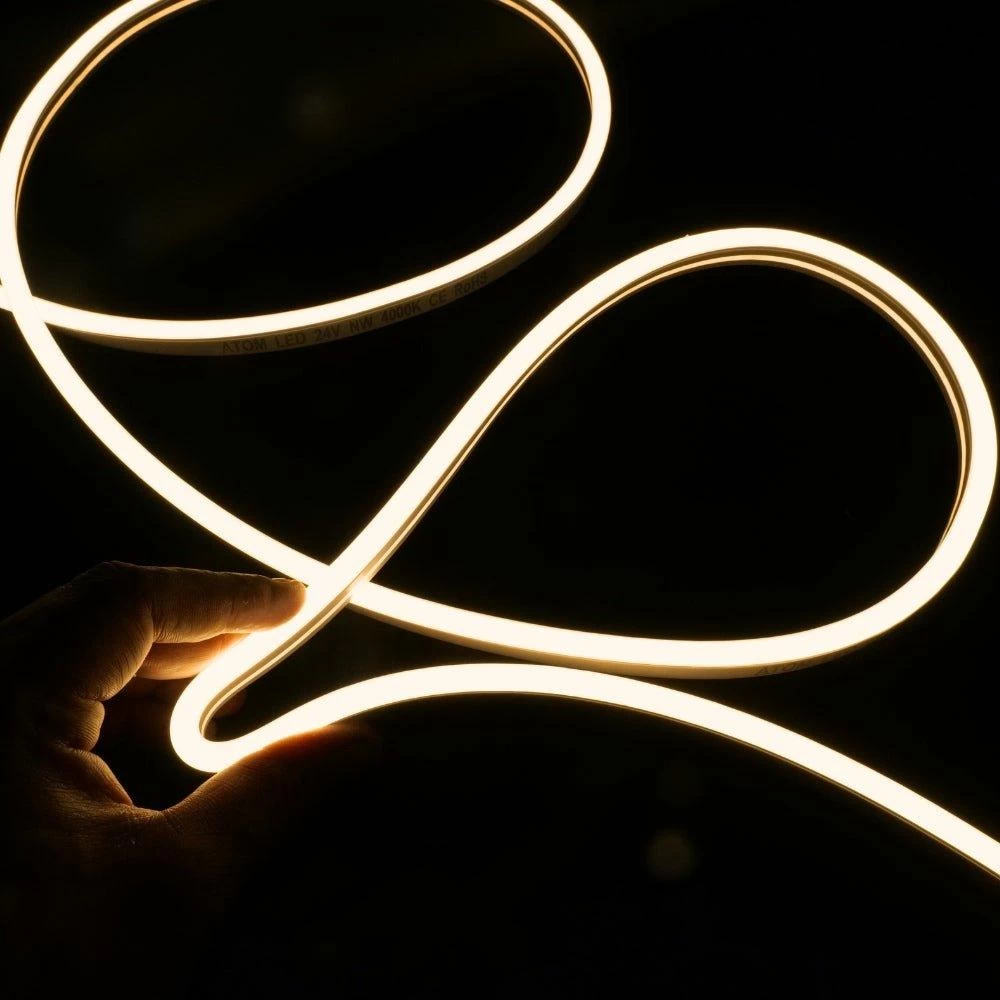

• Max Bend Radius – 3cm (30mm)
• Warranty – 3 years

….
