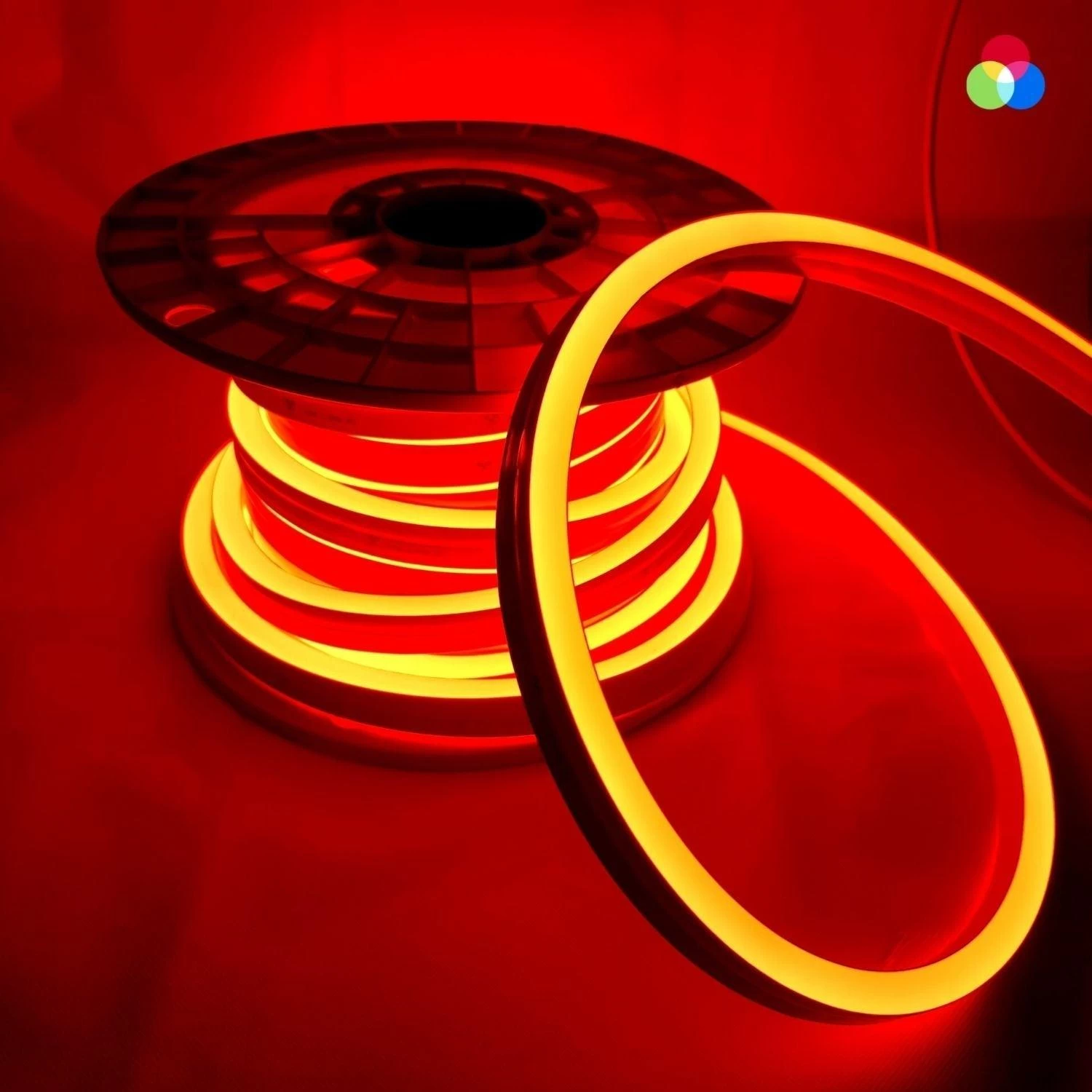

ATOM LED RGB Neon Flex 24V 10x20mm IP68 Waterproof 12.5cm Cut

LED Neon flex is a flexible light tube designed to produce an ambient linear lighting effect and is perfect for single use display lighting. PVC totally diffused, ‘no shadow’ no spots and flexible.

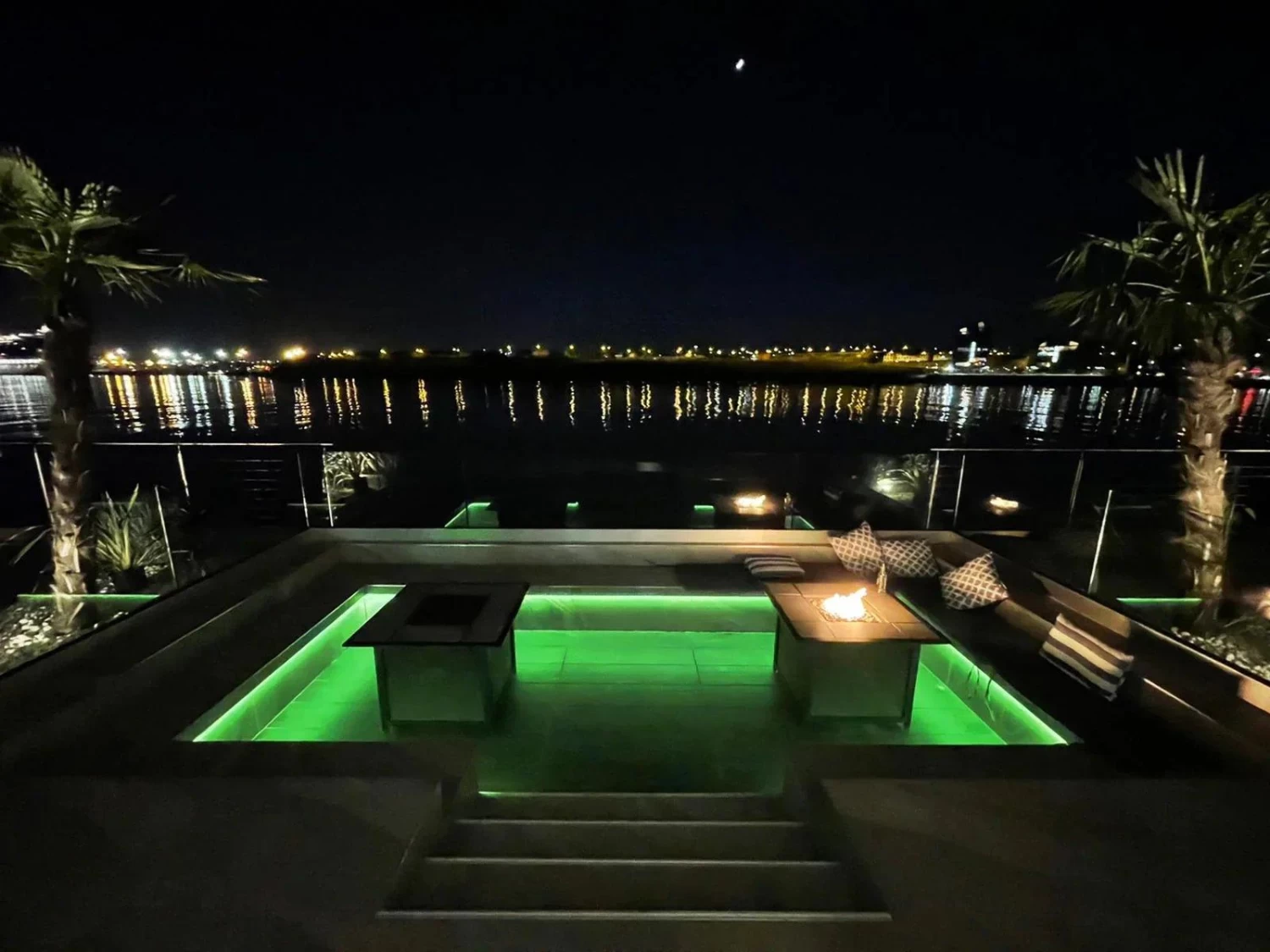

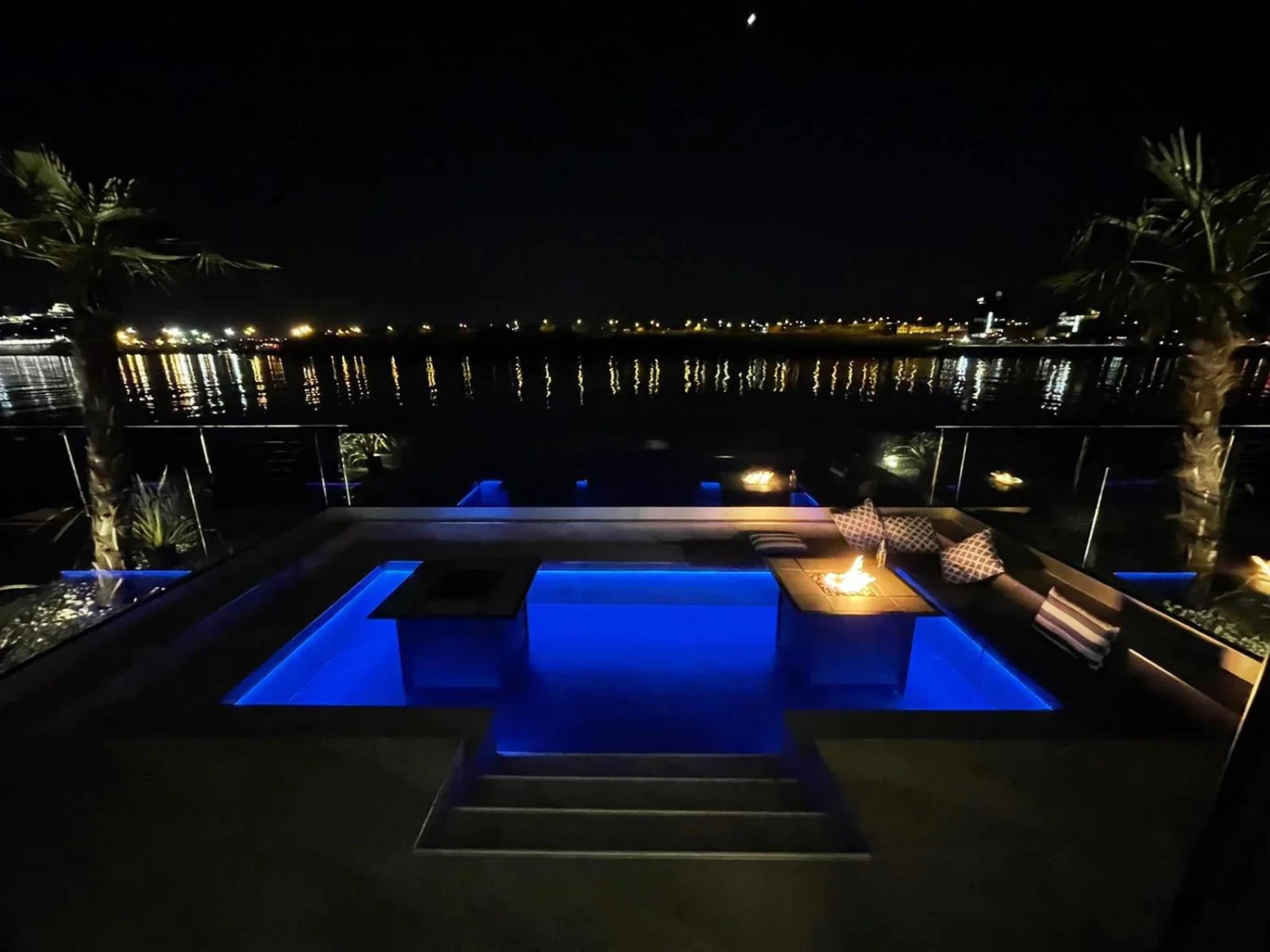

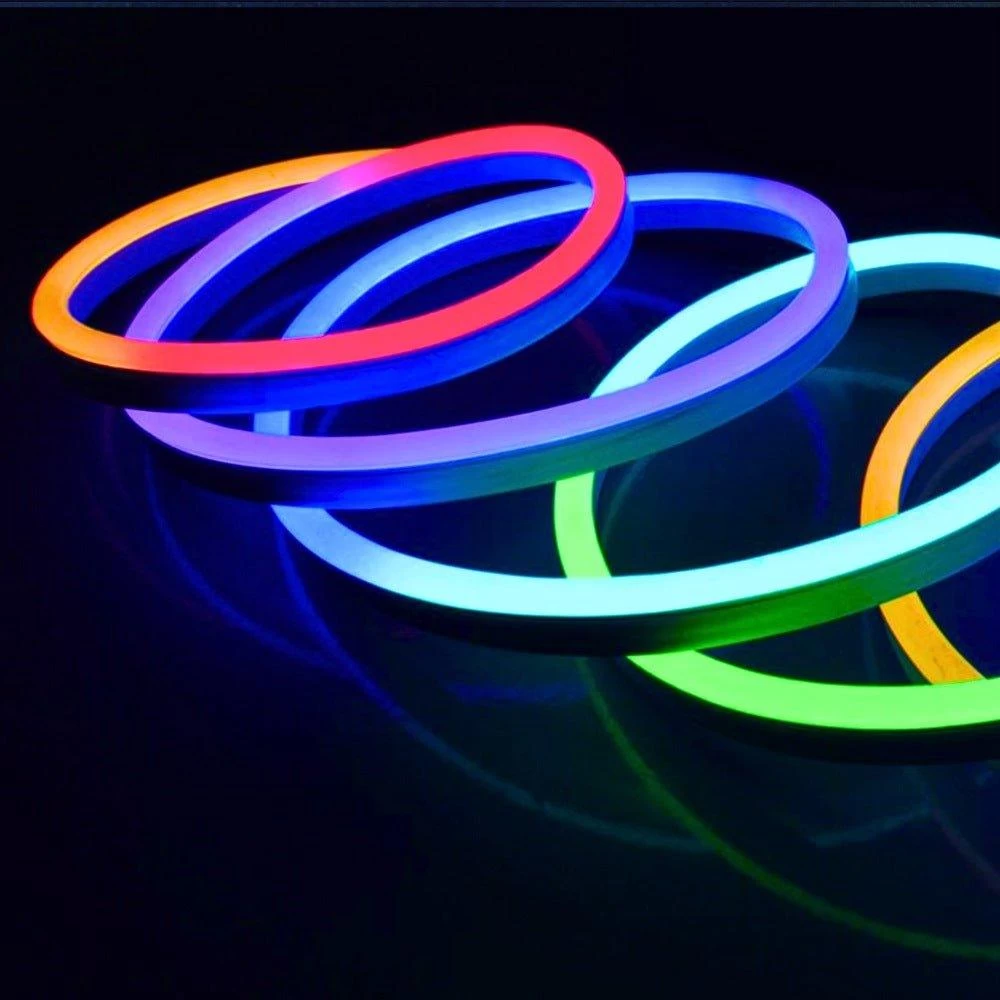

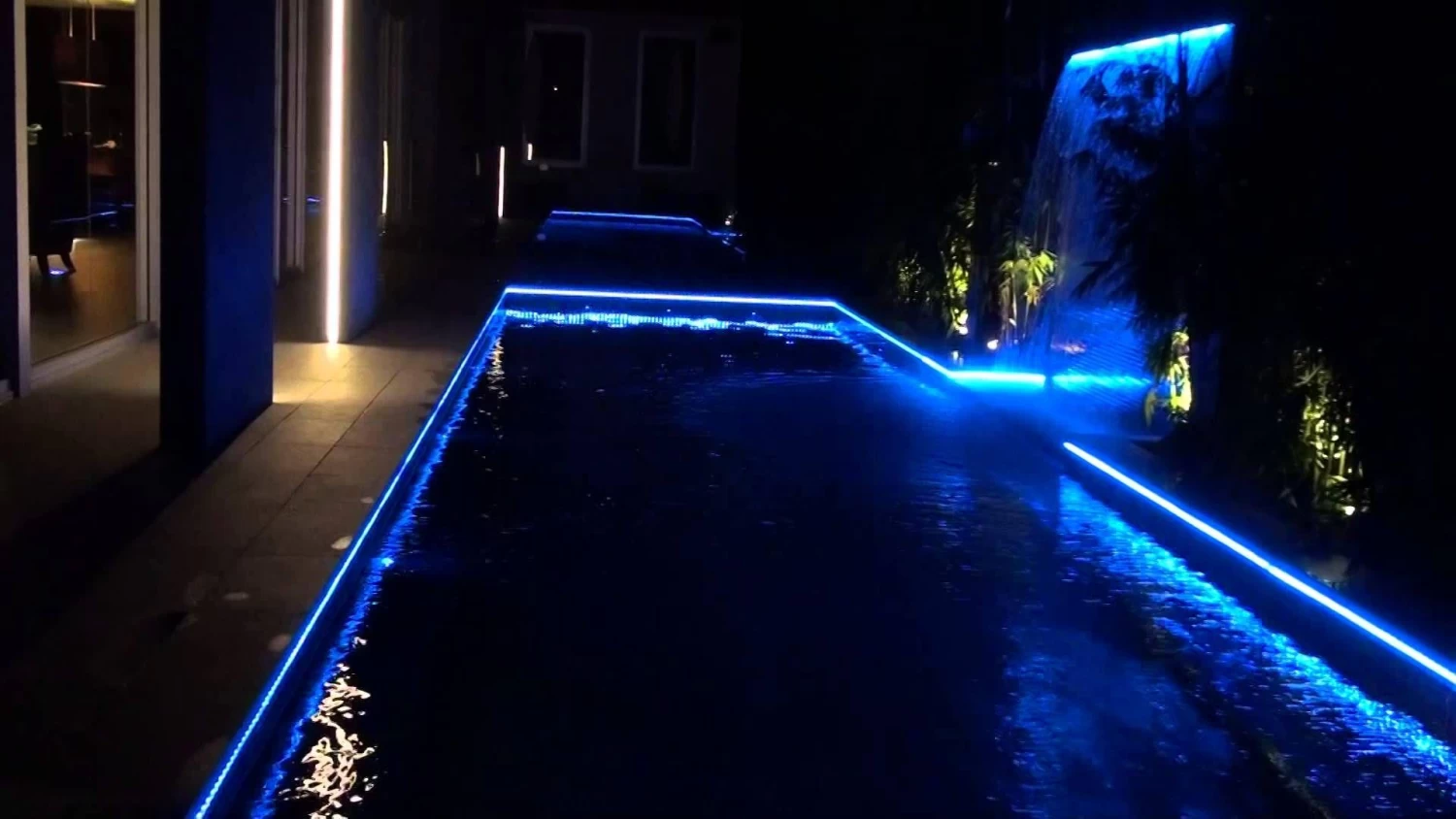

It’s durable body allows for installations both in and outdoors where light water exposure may occur.  Pair with one of our RGB controllers for colour changing effects.

Horizontal bending with 3cm bending radius.

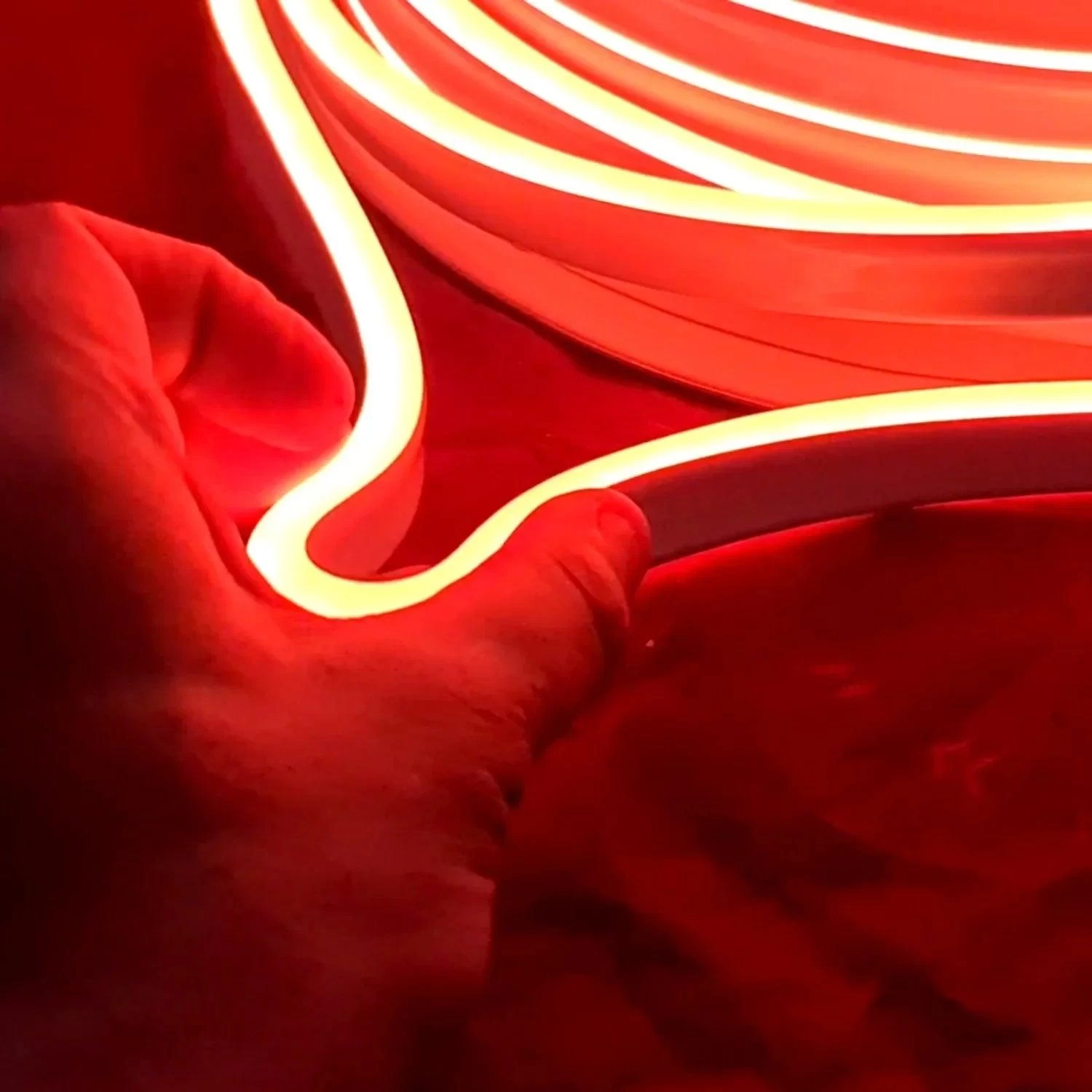

Neon Flex looks better than glass neon – and it opens all the environments where fragile Glass Neon cannot be used. As the name suggests, it is highly flexible. LED Neon Flex can be bent to a minimum radius of 3 cm, and can be cut easily to your desired lengths. One side power with maximum continuous length at any time is 20 metres.

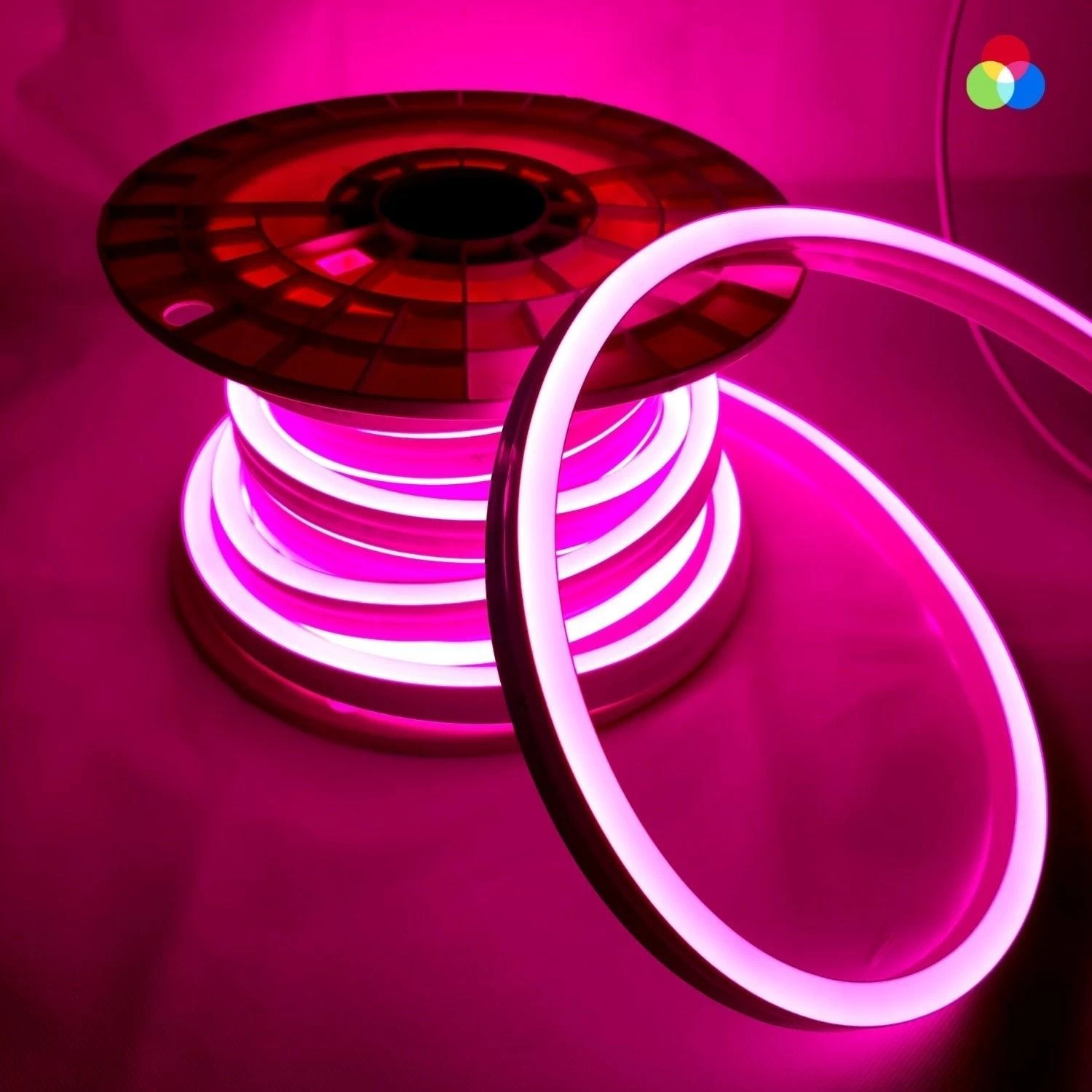

Please Note: We are not able to offer refunds on cut lengths of Neon Flex, only for full 50m reels. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

For a working Neon Flex installation you will need:

• Neon Flex LED

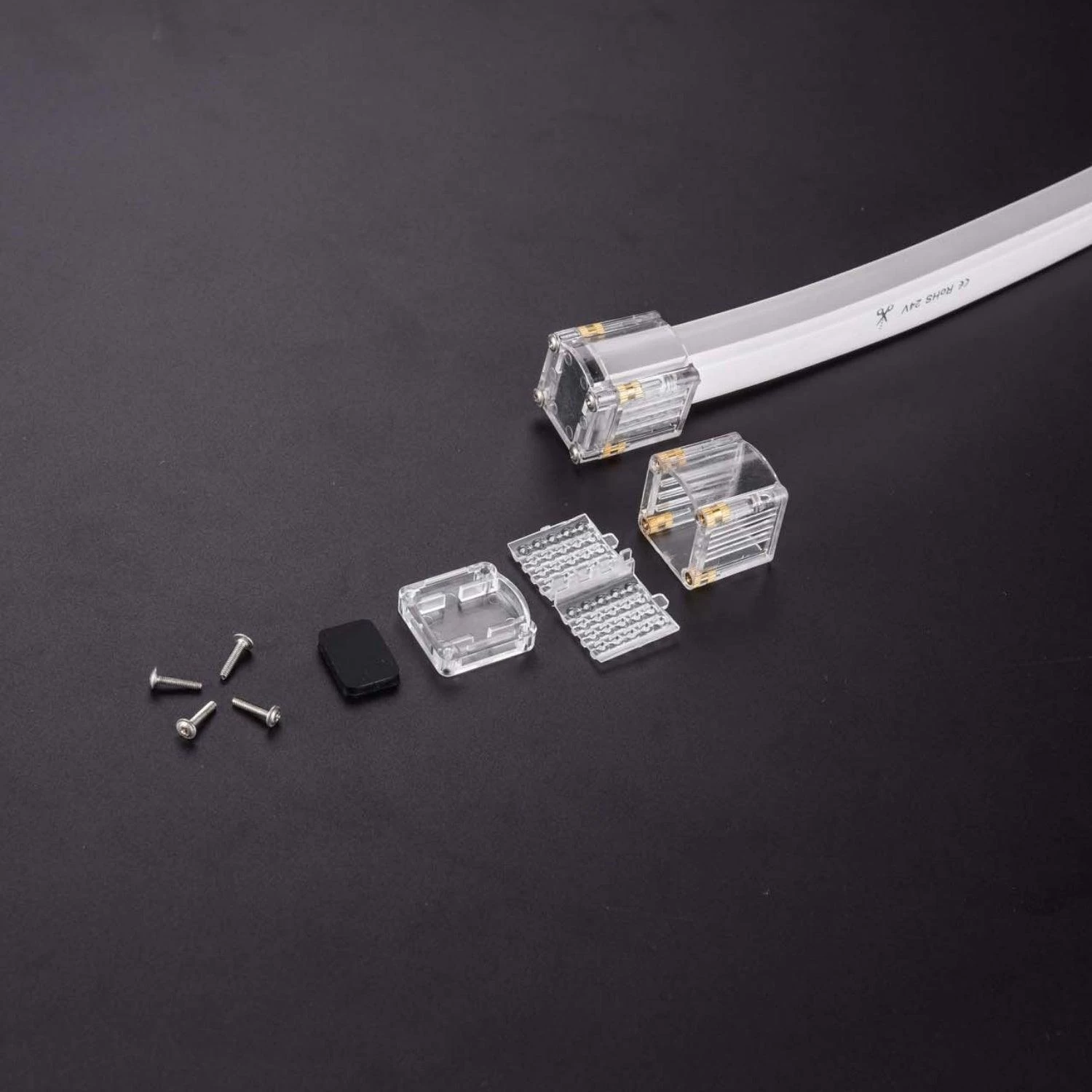

• 1 x Neon Flex Front Cap with Power Cable 3 Metre
• 1 x Neon Flex End Cap

Please note this is RGB Neon Flex, not the Addressable/Digital RGB Neon Flex WS2811.

Specification:

• Voltage – DC 24V

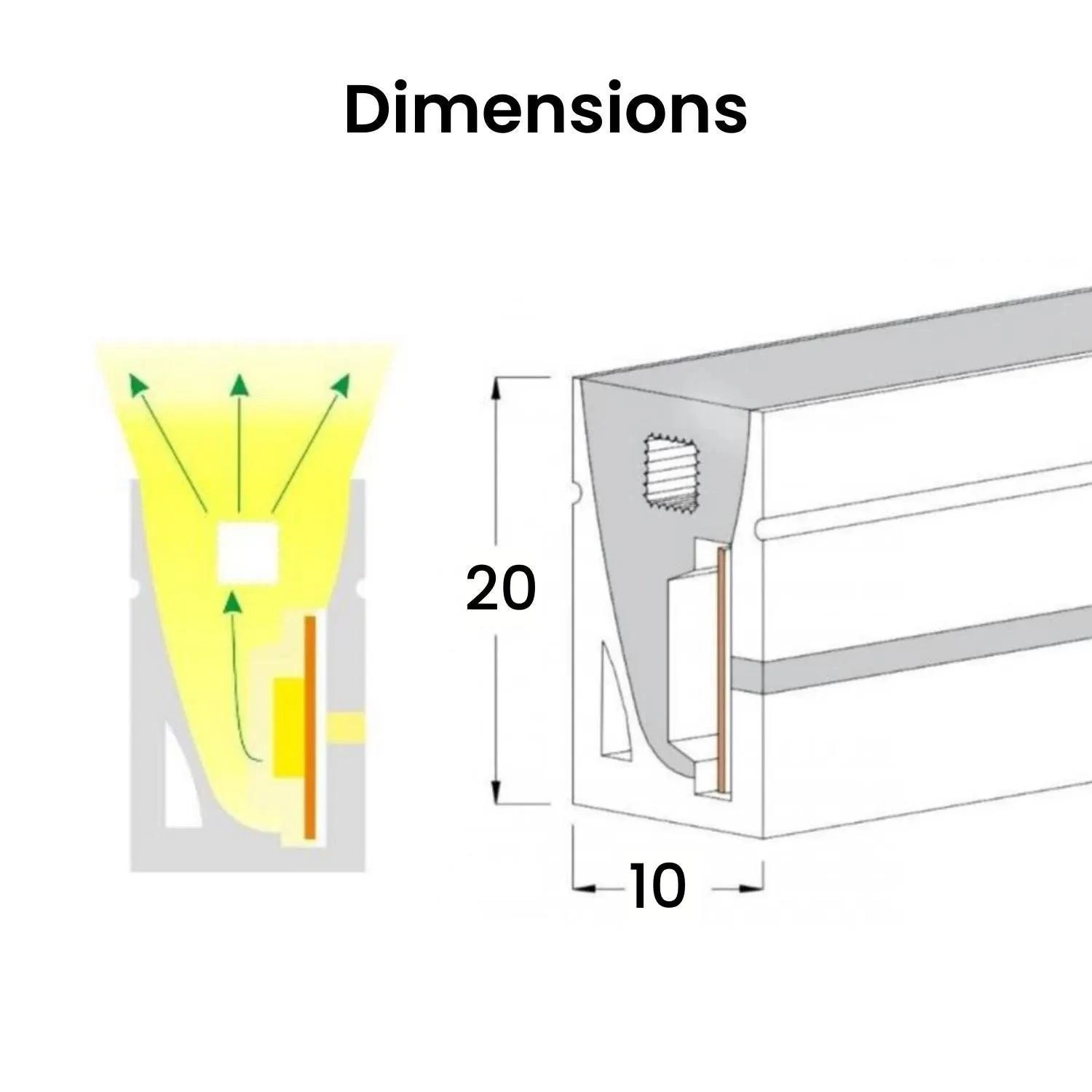

• Dimensions – 10mm x 20mm
• LED Type – SMD5050
• Number Of LEDs – 60 Per Metre
• Unit/Cut Length – 12.5cm
• Max Load – 20 Metre
• LED Distance – 7.5mm
• Power – 14W Per Metre
• Lumens – 770 Per Metre
• Jacket Type: Flat Shape
• Waterproof – IP68 Waterproof
• Bent Angle – 3cm
• Warranty: 5 Year
• Certirication: CE & ROHs

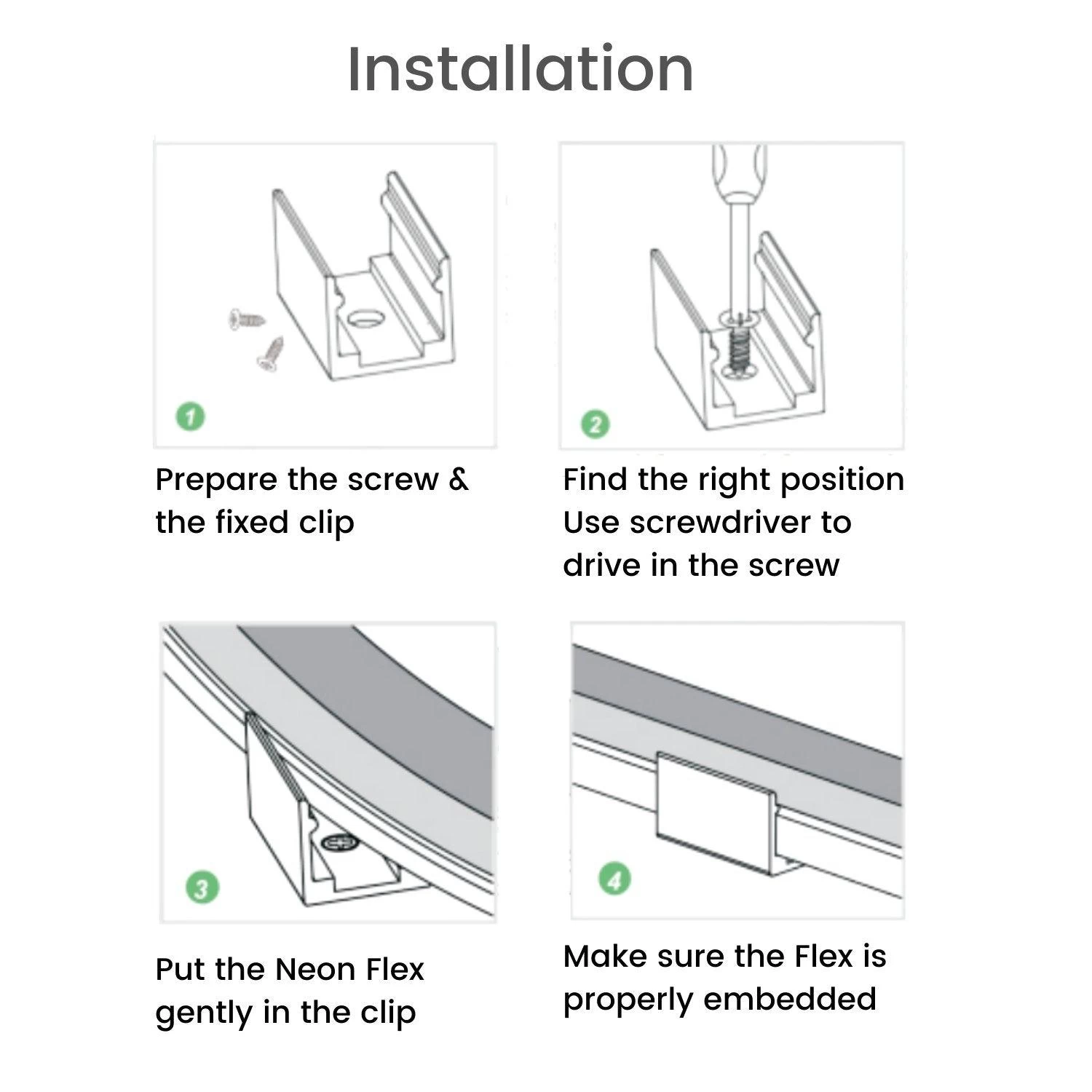

Installation Guide:

….
