ATOM LED Red LED Neon Flex DC 12V IP65 Waterproof 8x16mm 120 LEDs/M 1cm Cut

Our LED Neon Flex 8x16mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 20mm, making it ideal for use in signage and display installations both indoors and outdoors. It is cuttable every 1cm, super bright with 120LEDs per metre.

8x16mm Neon Fles is horizontal bending

We’ve designed this Neon Flex Light in a way that the LEDs give you the maximum brightness, efficency and consistency of light by using ultra-bright 2835 LED chips.

This Neon Flex is fitted with 120 LEDs per metre, giving an almost perfect line of light, with no sign of dots or dark shades. It’s also waterproof to IP65 rating; LEDs are encapsulated in a robust and flexible silicone housing.

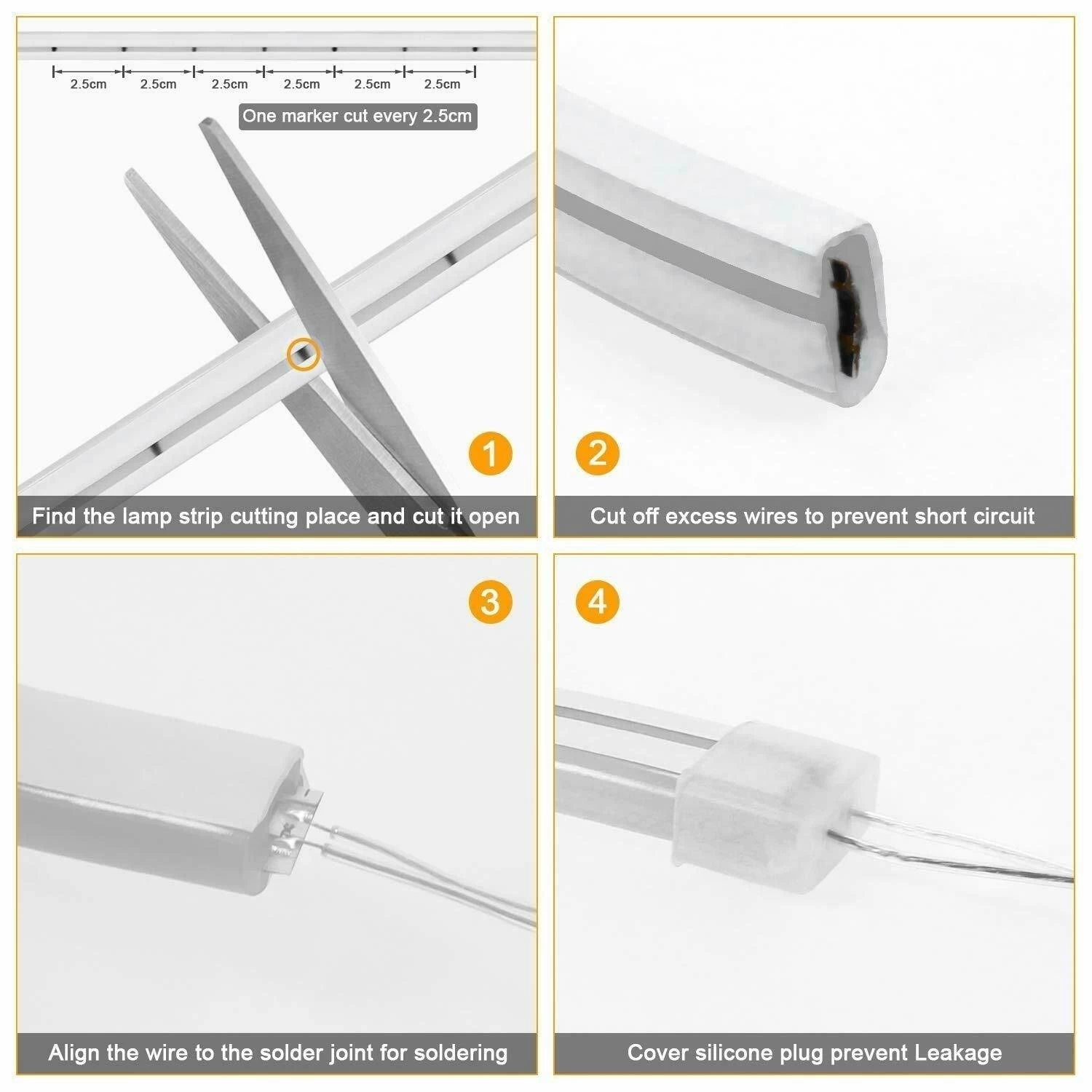

Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur. You can get 10m continuous length, however, you need to power the led neon flex from both ends.

Whether you’re looking to light up a kitchen counter, accent a bookshelf, or brighten up a bathroom mirror, the 8x16mm Mini Neon Flex is the perfect choice for all your furniture lighting needs.

Our 8x16mm Mini Neon Flex comes with a 2 year guarantee as standard on indoor installations and 1 year for outdoor use(Light splashes of water).

Note: Should not be fully exposed to outdoor weather, for full outdoor use please make sure to use silicone glue at the end cap and front end of the neon to avoid water ingress.

Includes LED Neon Flex only. No clips and adapters include

Driver Requirements:
1 metre > 7
2 metre > 14w
3 metre > 21w
4 metre > 28w
5 metre > 35w

Do not use the power supply to its full capacity.

Specification:

• Working Voltage: DC 12V
• Light Colour: Red
• LEDs: 2835
• Cutting: 1cm
• Standard Packing: 5m Continuous run
• Strip Backing: White
• Waterproof Rating: IP65
• Working Temperature: -20 – 45 degree

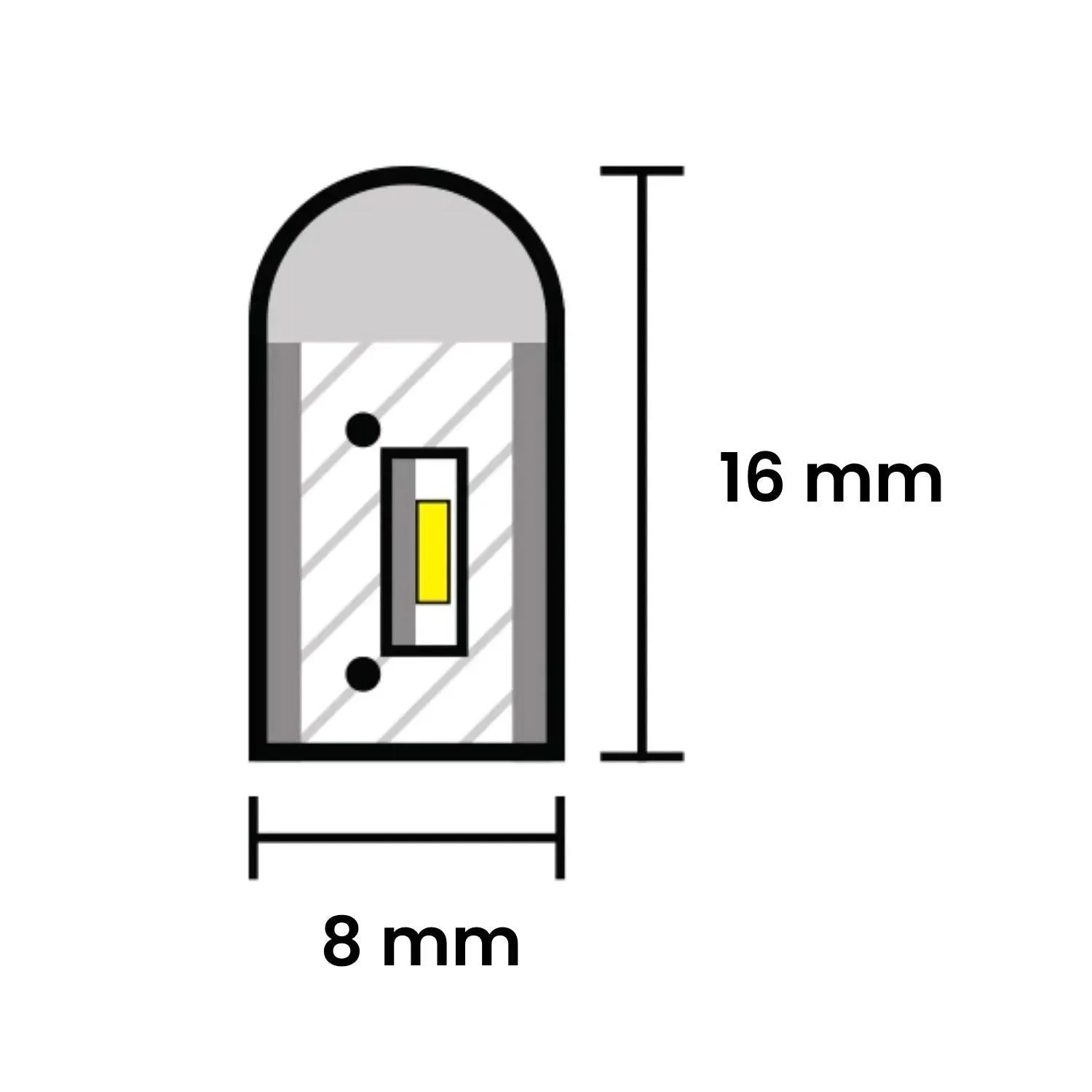

• LED Neon Flex Dimension: 8x16mm
• Power: 7W/Meter
• Extension cable: 20cm cable

….
