ATOM LED Mini Warm White Neon Flex 3000K 12V 6x12mm 120LEDs/m IP65 Waterproof 2.5cm Cut Kit

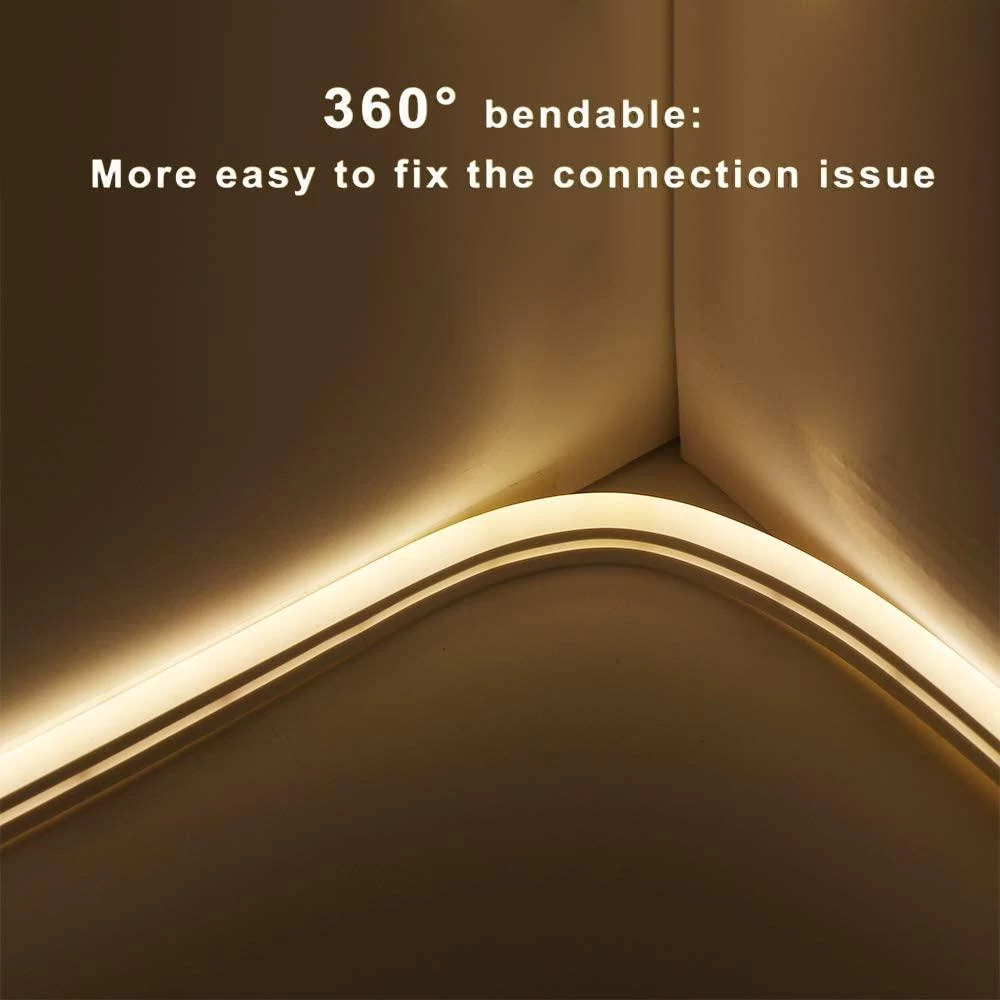

Our mini LED Neon Flex 6x12mm offers a non-spotting, fully diffused light output. The splashproof silicon coating is fully flexible with a bend radius of up to 20mm, making it ideal for use in signage and display installations both indoors and outdoors. It is cuttable every 2.5cm (25mm), super bright with 120LEDs per metre.

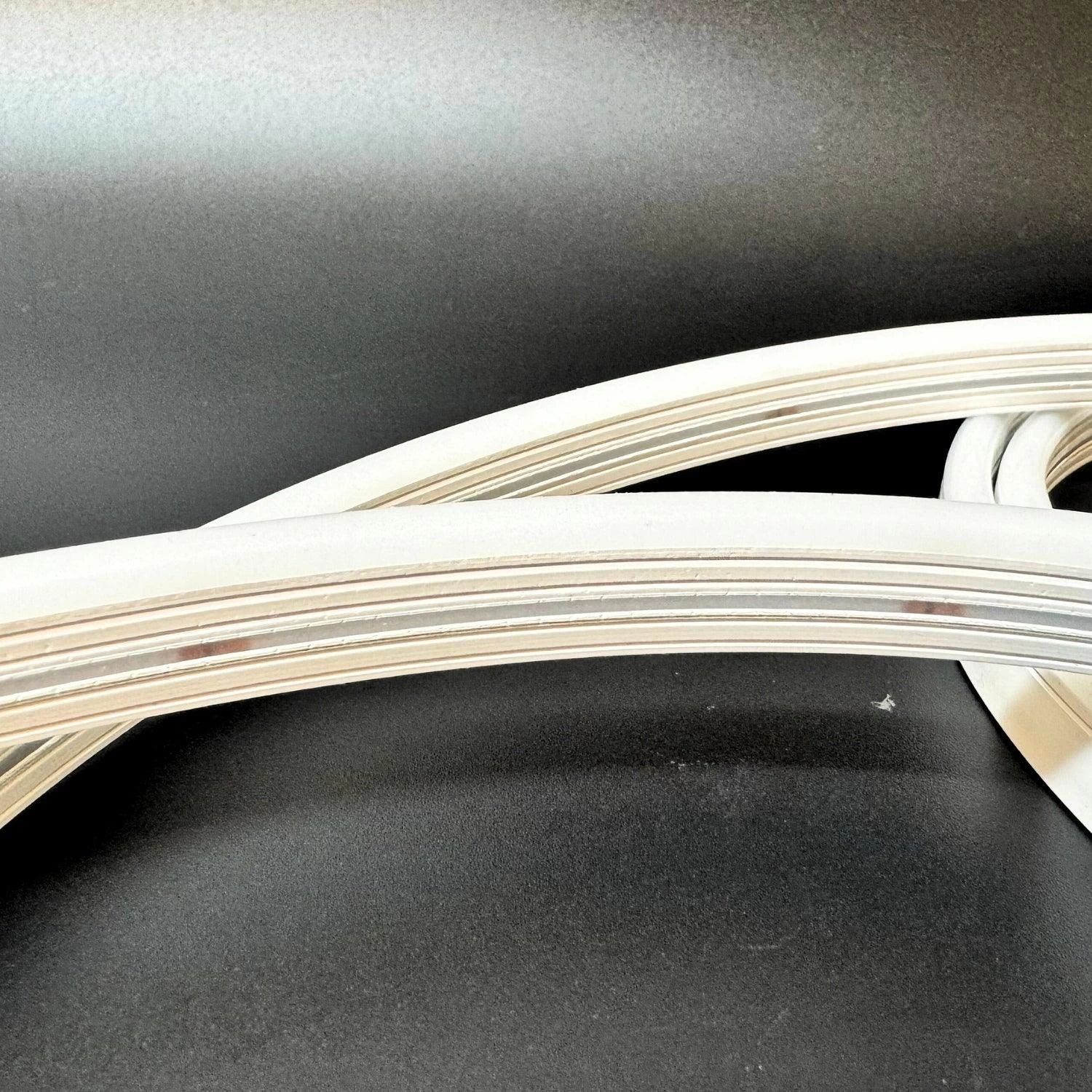

6x12mm Neon Fles is horizontal bending

We’ve designed this Neon Flex Light in a way that the LEDs give you the maximum brightness, efficency and consistency of light by using ultra-bright 2835 LED chips.

This Neon Flex is fitted with 120 LEDs per metre, giving an almost perfect line of light, with no sign of dots or dark shades. It’s also waterproof to IP65 rating; LEDs are encapsulated in a robust and flexible silicone housing.

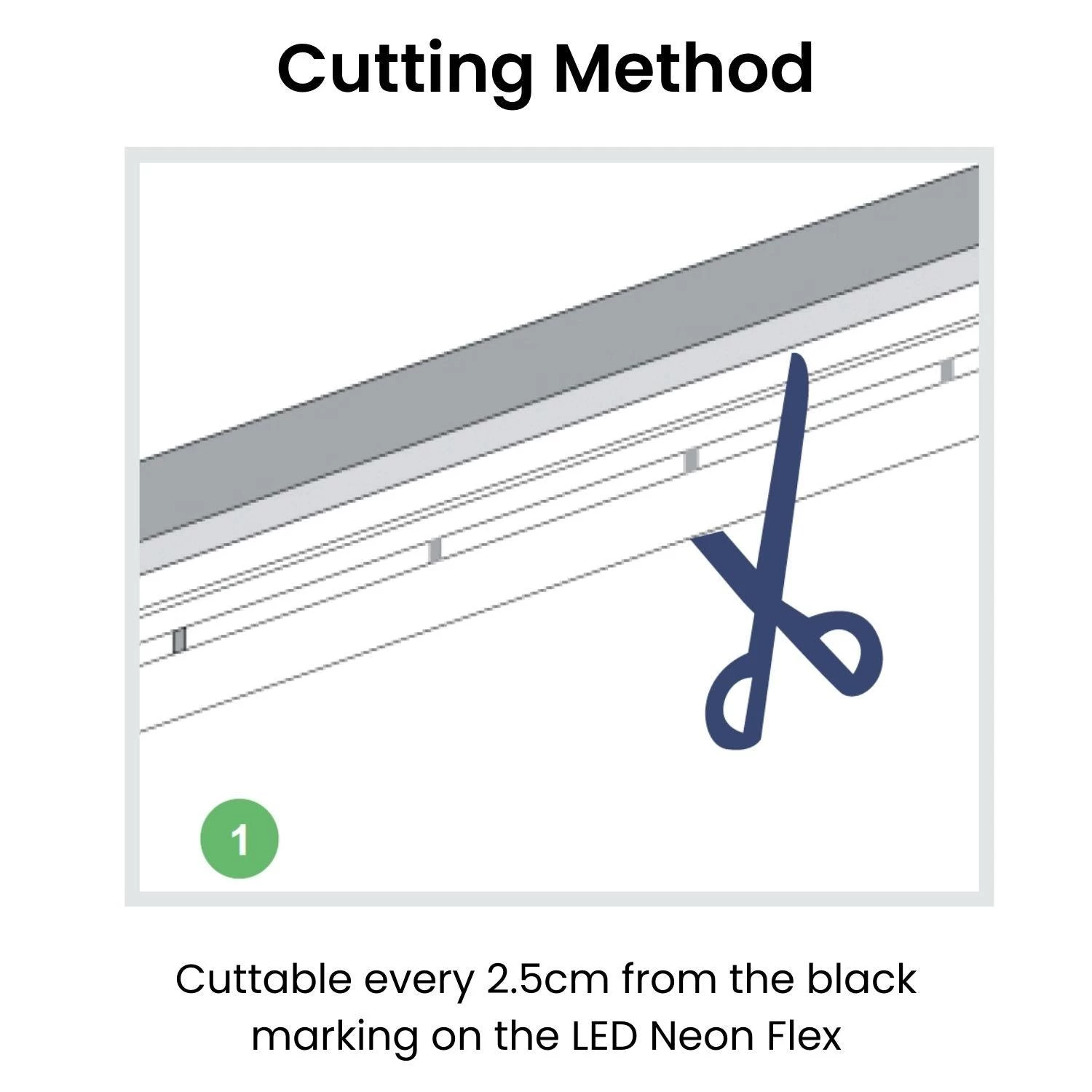

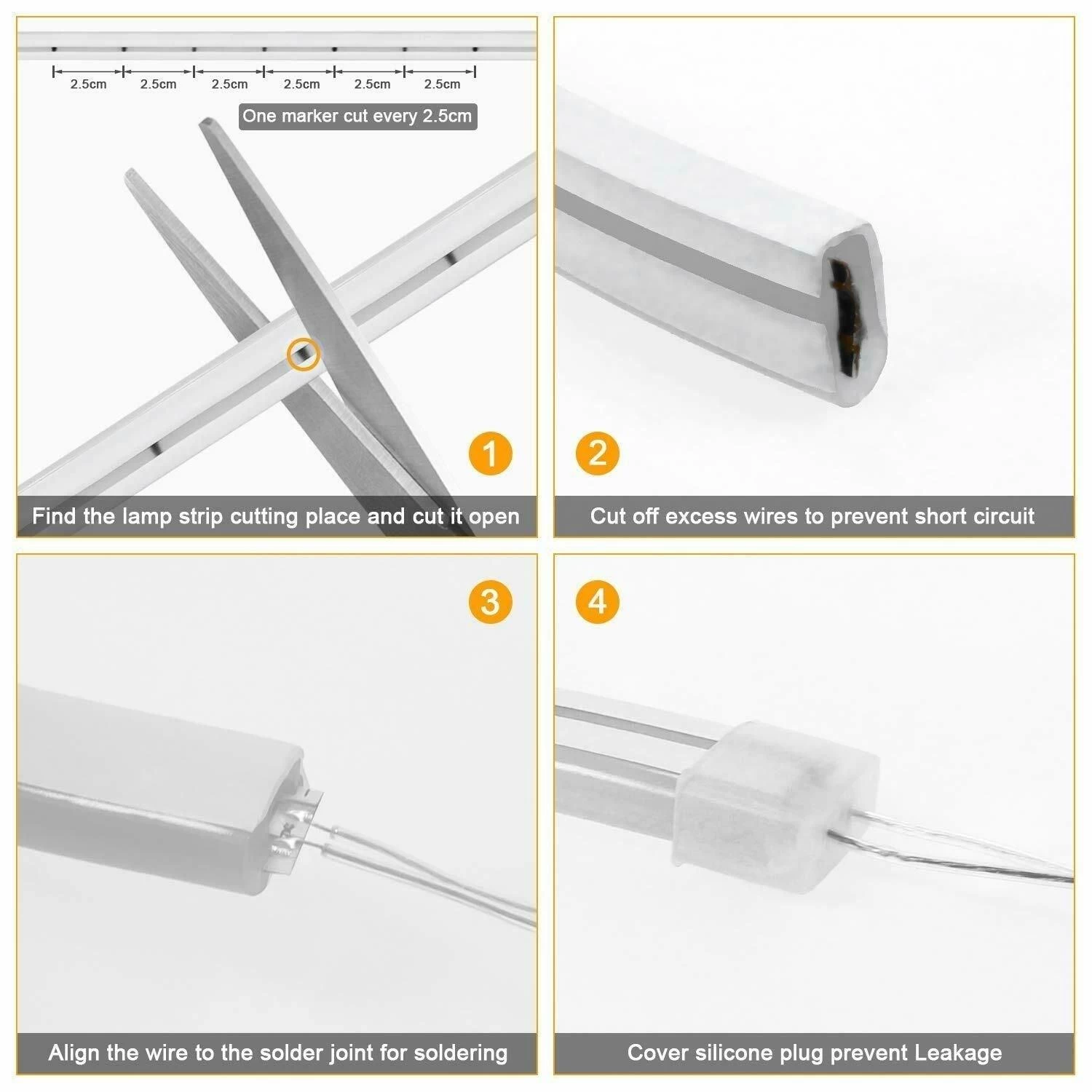

Neon Flex is a durable fully diffused linear light perfect for furniture installations thanks to it’s ultra slimline micro profile. This neon can be cut easily to your desired lengths at the allocated cut points. Maximum length at any time is 5 metres before visible voltage drops occur. You can get 10m continuous length, however, you need to power the led neon flex from both ends.

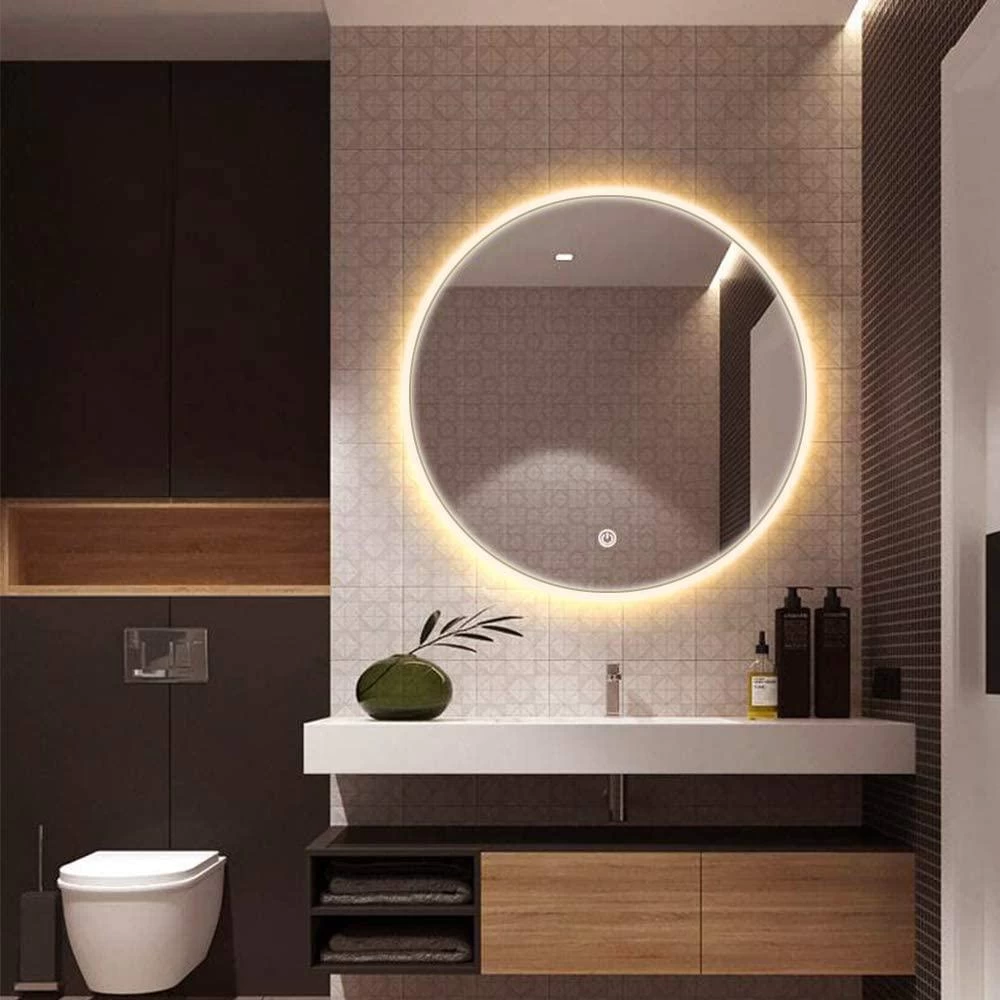

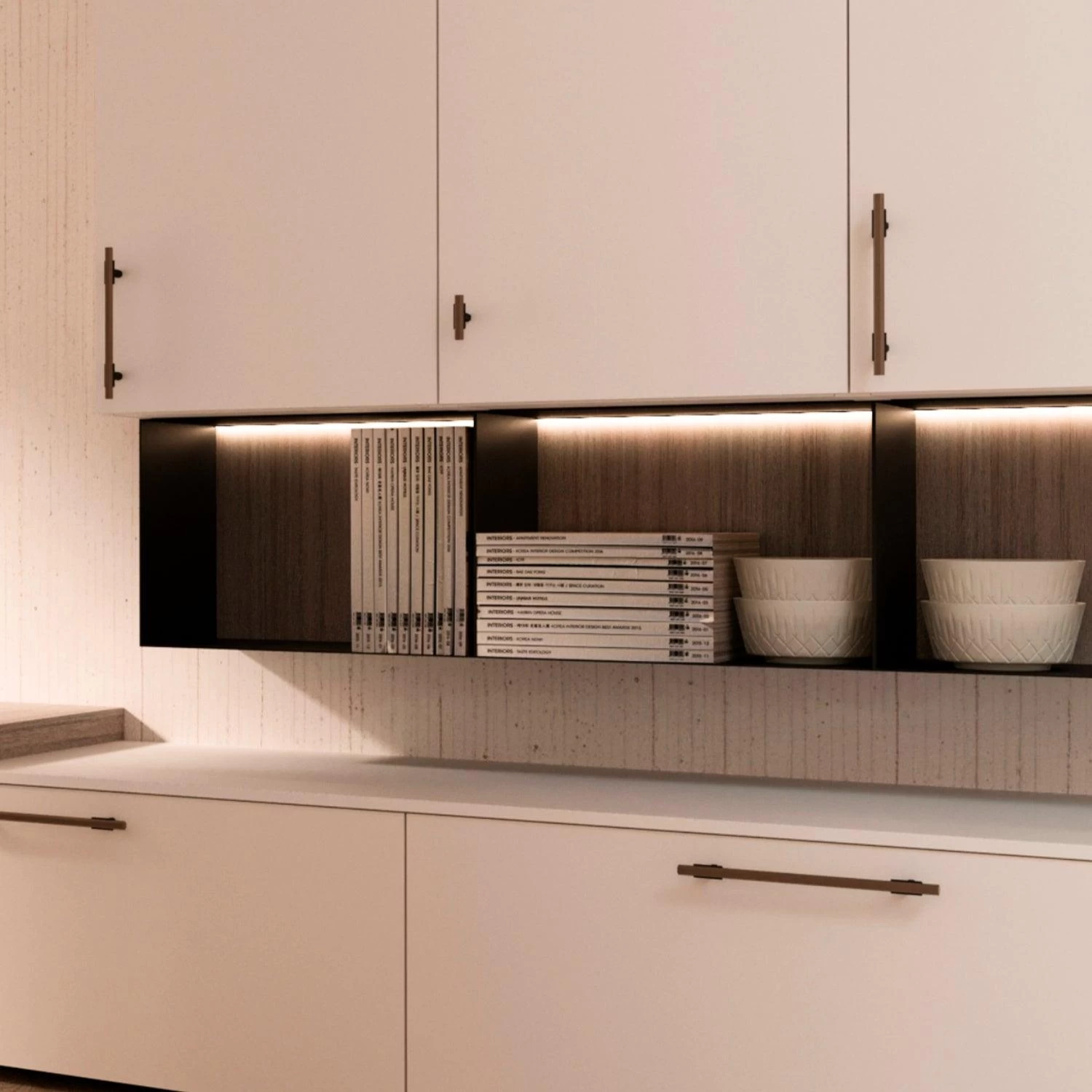

Whether you’re looking to light up a kitchen counter, accent a bookshelf, or brighten up a bathroom mirror, the 6x12mm Mini Neon Flex is the perfect choice for all your furniture lighting needs.

Our 6x12mm Mini Neon Flex comes with a 2-year guarantee as standard on indoor installations.

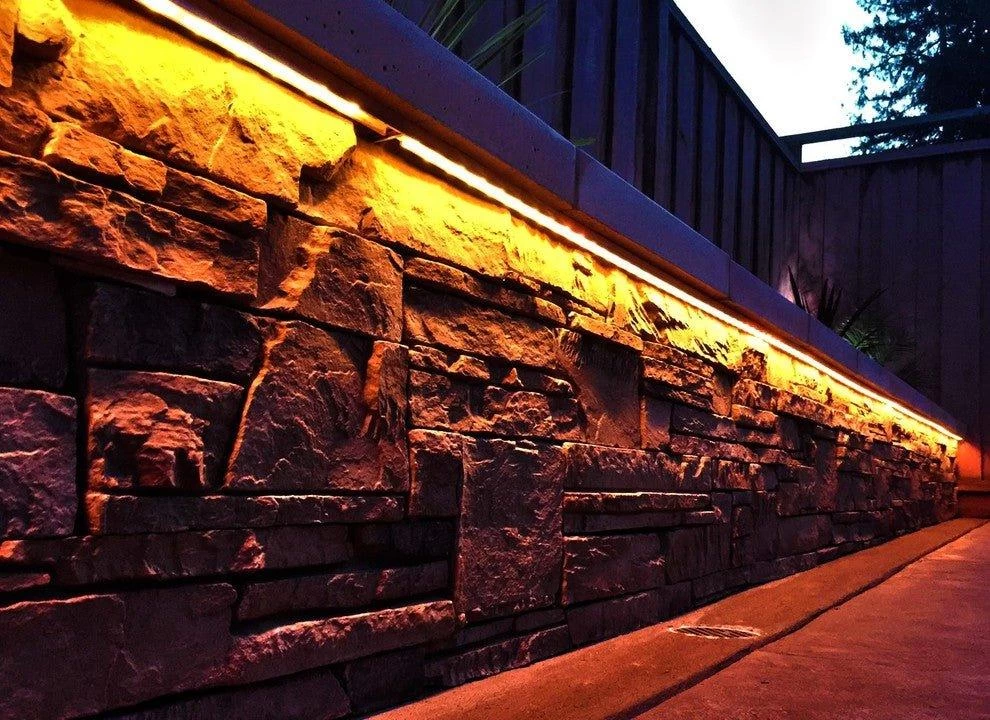

The electrical components in the LED Strip are covered with Silicone. It is perfectly protected against dust and moisture which contributes to its IP65 protection factor and makes this type of LED lighting perfect not only for indoor but also for outdoor use (light splashes of water).

Note: Should not be fully exposed to outdoor weather, for full outdoor use please make sure to use silicone glue at the end cap and front end of the neon to avoid water ingress.

Driver Requirements:
1 metre > 7
2 metre > 14w
3 metre > 21w
4 metre > 28w
5 metre > 35w

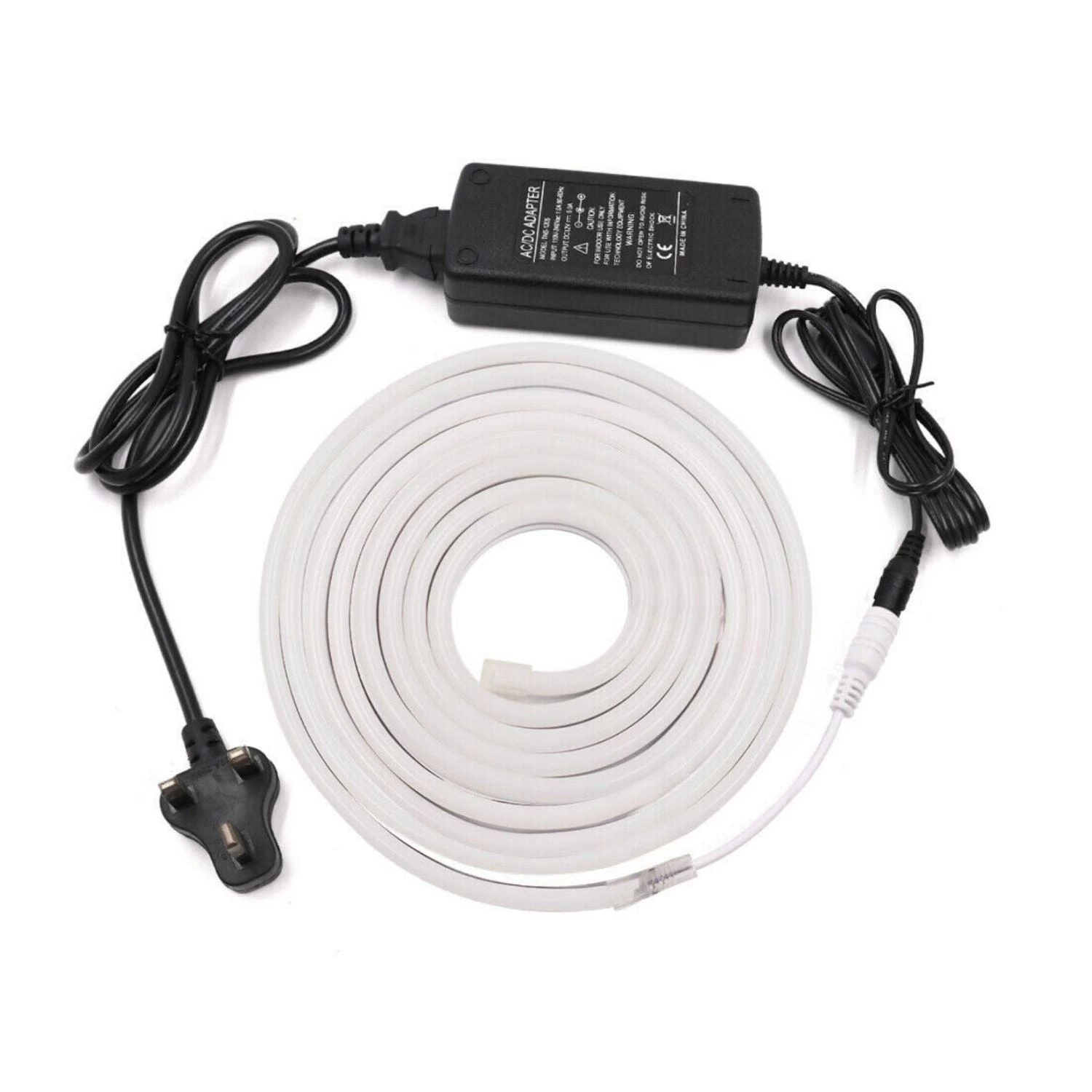

Package Content:

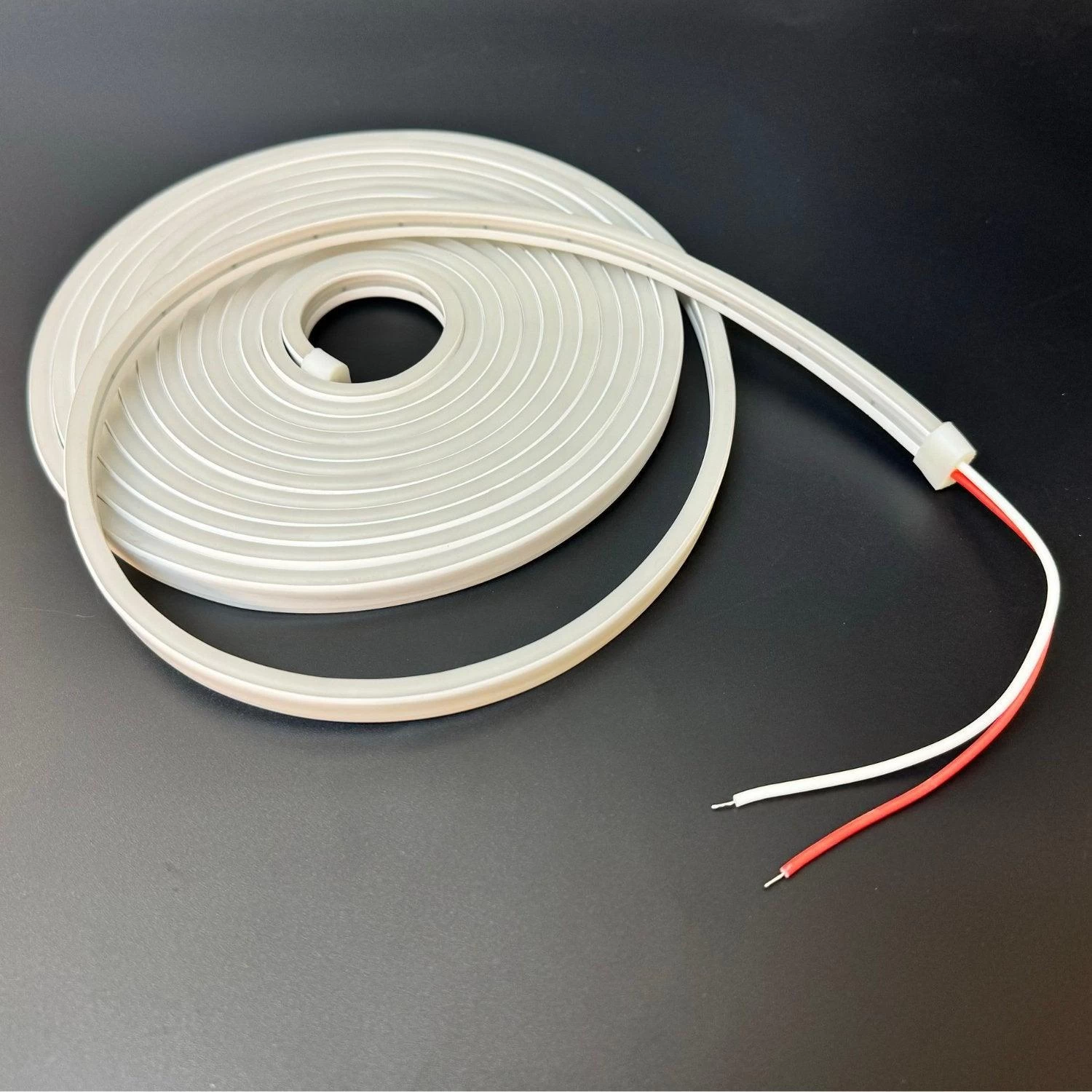

1 x LED Neon Flex
1 x Clips (1 Clip Per metre)
1 x 12V Power Adapter 5A

Product Specification:

Product Type	LED Neon Flex
Colour	Warm White 3000K
IP Rating	IP65 Waterproof
LED	120 LEDs/m
Metres	5 Metre
Guarantee Period	2 Years
Material	Silicone
Bending	Horizontal
Voltage:	DC 12V
Brightness	High Brightness
LED Chip	SMD 2835

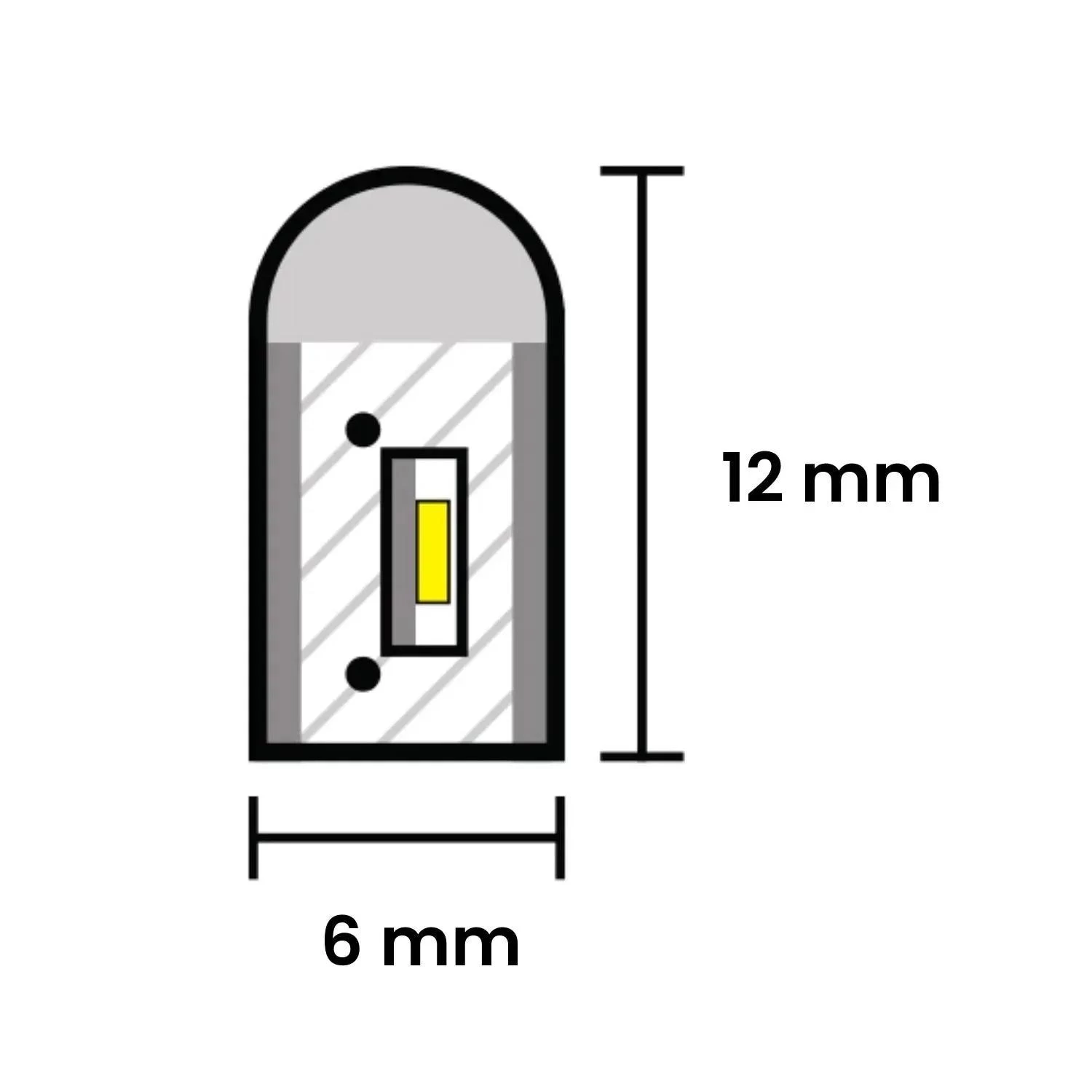

Dimensions	6mm x 12mm
Shape	Dome
Input	DC 12V
Beam Angle:	180 degree
Cut Intervals:	2.5cm (25mm)
LM	>320/m
CRI	>80
Dimmable:	Yes
LED QTY	120/m
Continuous run	5m
Average LED life Hrs:	30,000
CE and RoHS:	Yes

….
