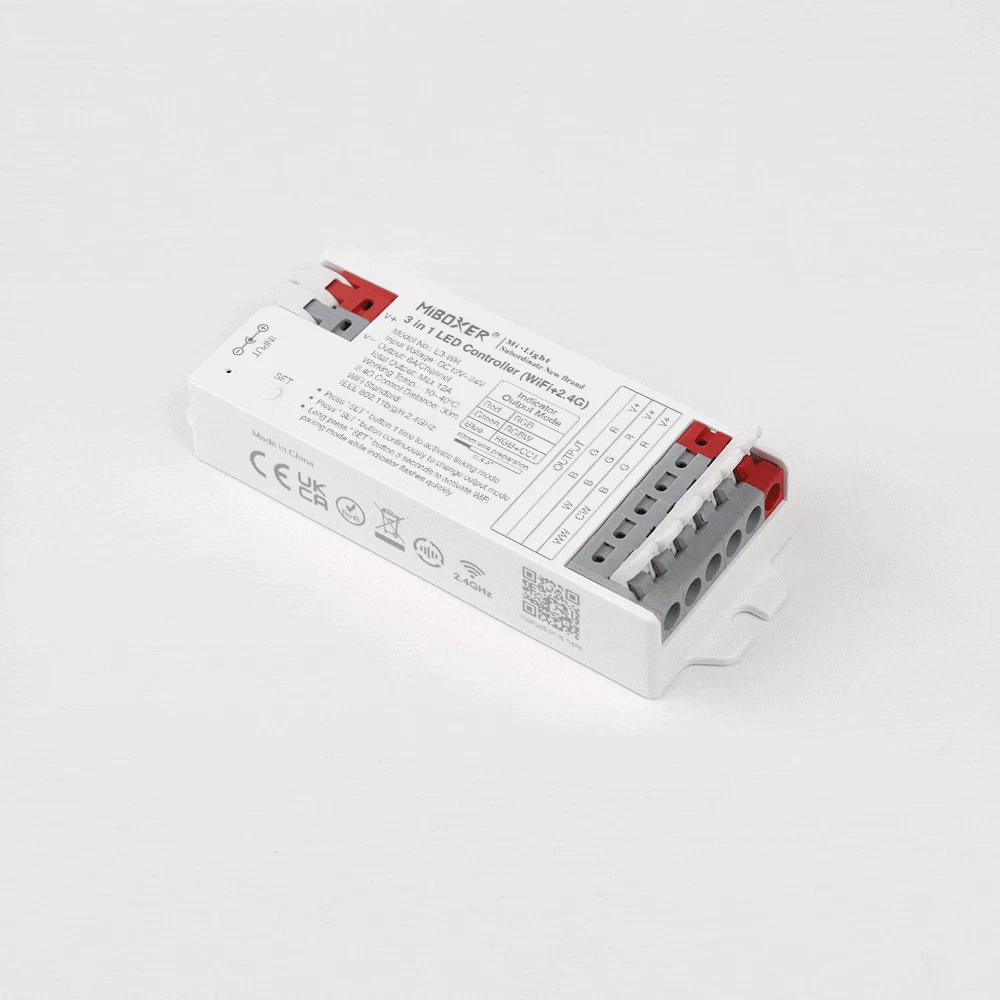

ATOM LED MiBoxer E3-WR 3 In 1 WiFi Smart Strip LED Strip Dimmers Controller

Tool-free instant wiring
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• 16 Millions of colors to choose, color temperature adjustable, brightness and saturation controllable
• Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Experience seamless wireless control with an unobstructed range of up to 30 meters. Utilize wireless control via handset or wallplate, for effortless operation, achieve precise brightness adjustments with the push dimming feature and synchronize lighting across multiple receivers.

This Mi Light LED controller is compatible with RGB, RGBW and RGB + CCT tuneable LED strip lights and is compatible with both 12V and 24V systems with a maximum current of 12A per channel.

Specification:

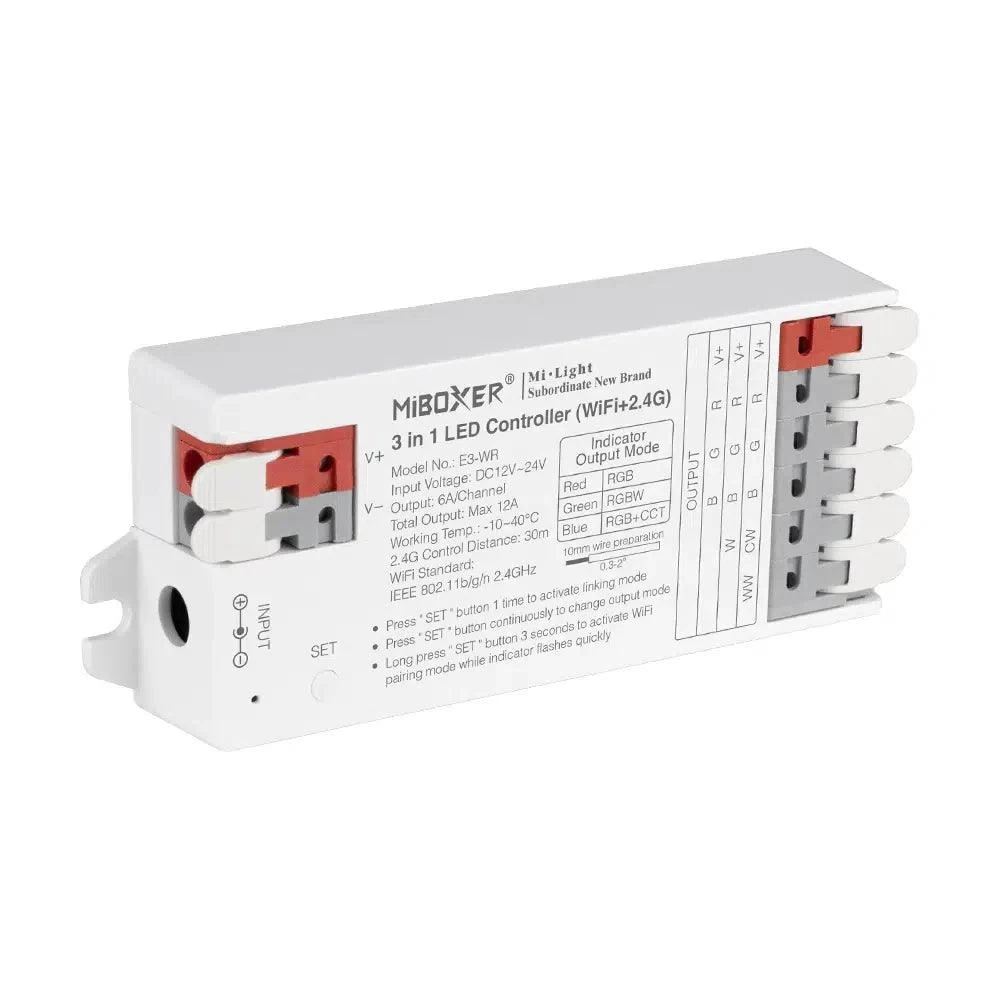

Product – 3 in 1 LED Strip Controller (WiFi+2.4G)
Model – E3-WR
Input Voltage – DC 12V – 24V
Output – 12A/Channel
Total Output – 12A / Channel
Communication Protocol – WIFI + 2.4GHz
2.4 RF Control Distance – 30 Metre
IP Rating – IP20
Working Temperature – -10~40°C
WiFi Standard – IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol – Bluetooth 4.2 (low power consumption)
Size - 100.6mm x 40mm x 17.6mm
