ATOM LED Extra Long Warm White Neon Flex 48V 10x20mm IP68 Waterproof 30m

Our high-quality Extra Long Warm White 2800K is horizontal bending which emits a bright dotless LED light from the top of the flex. Our led neon flex is a low voltage, compact, highly flexible, dotless, Linear lighting solution.

Our LED flexible neon is designed for both outdoor and indoor architectural projects in commercial installations. These include settings such as shopping centres, hotels, restaurants and many other applications where a neon light would be required. It can light up to 30 metre continuous run with one side power without any voltage drop.

It comes with a 5 year Indoor Warranty & 3 year Outdoor Warranty.

The IP68 rating offers full protection against water, salt water, UV radiation and solvents making this product ideal for use in exposed locations and challenging environments such as coastal holiday resorts and theme parks.

Suitable for use with neon flex mounting channel. We recommend installing our LED neon flex within an LED Aluminium Profile. These offer protection for the neon flex and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Important Note:

To power more than 30 metre you would have to feed both the ends of the neon flex. Up to 30 metre you can power it from one end. If the total length is more than 30 metre then you need to power the led neon flex from both the ends and you are going to need another End Cap with wire to power the neon flex from both ends to avoid voltage drop.

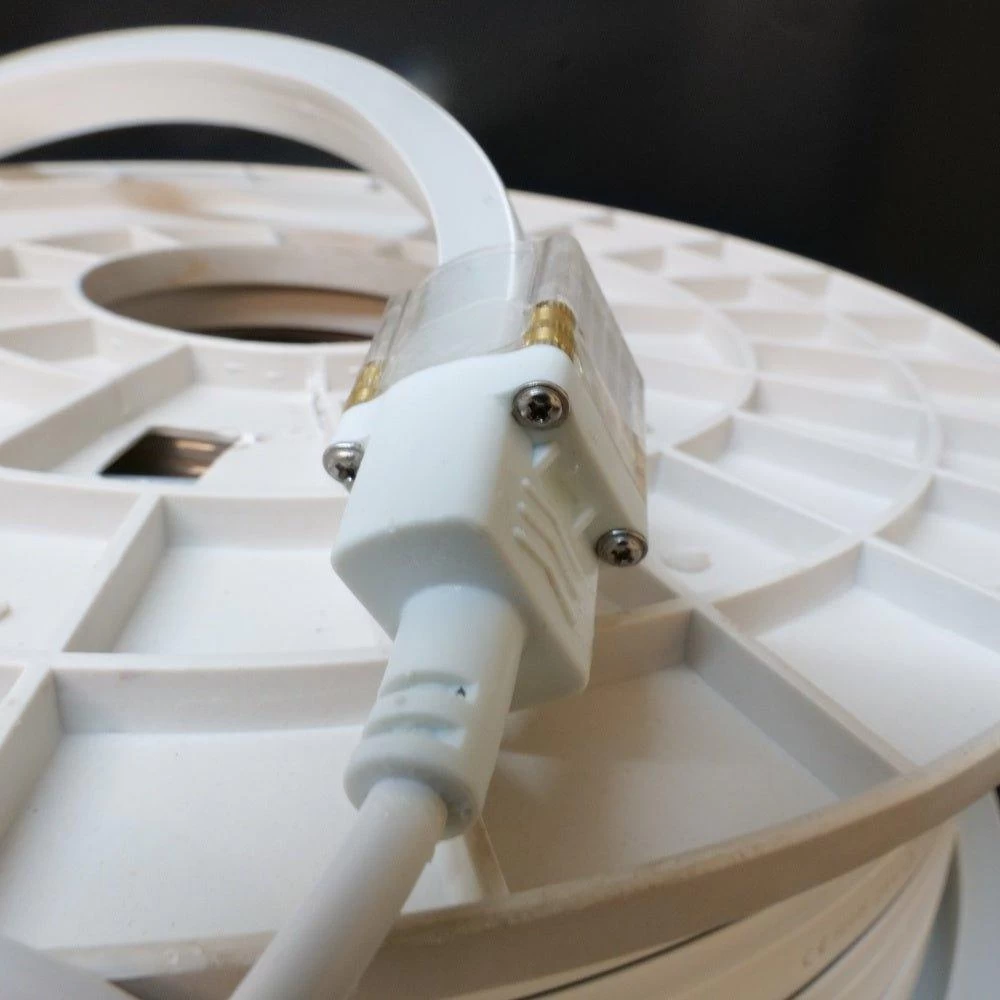

With a 50 metre roll you will get one Front wire IP68 connector with 3 Metre Extension Cable & End Cap attached to the NEON Flex.

Specification:

• Working Voltage: DC 48V
• Light Colour: Warm White 2800K
• LEDs: 2835 SMD
• Cutting: 12.5cm
• Standard Packing: 1m to 30m Continuous Length
• Strip Backing: White
• Waterproof Rating: IP68 Fully Waterproof
• Working Temperature: -20-60 degree

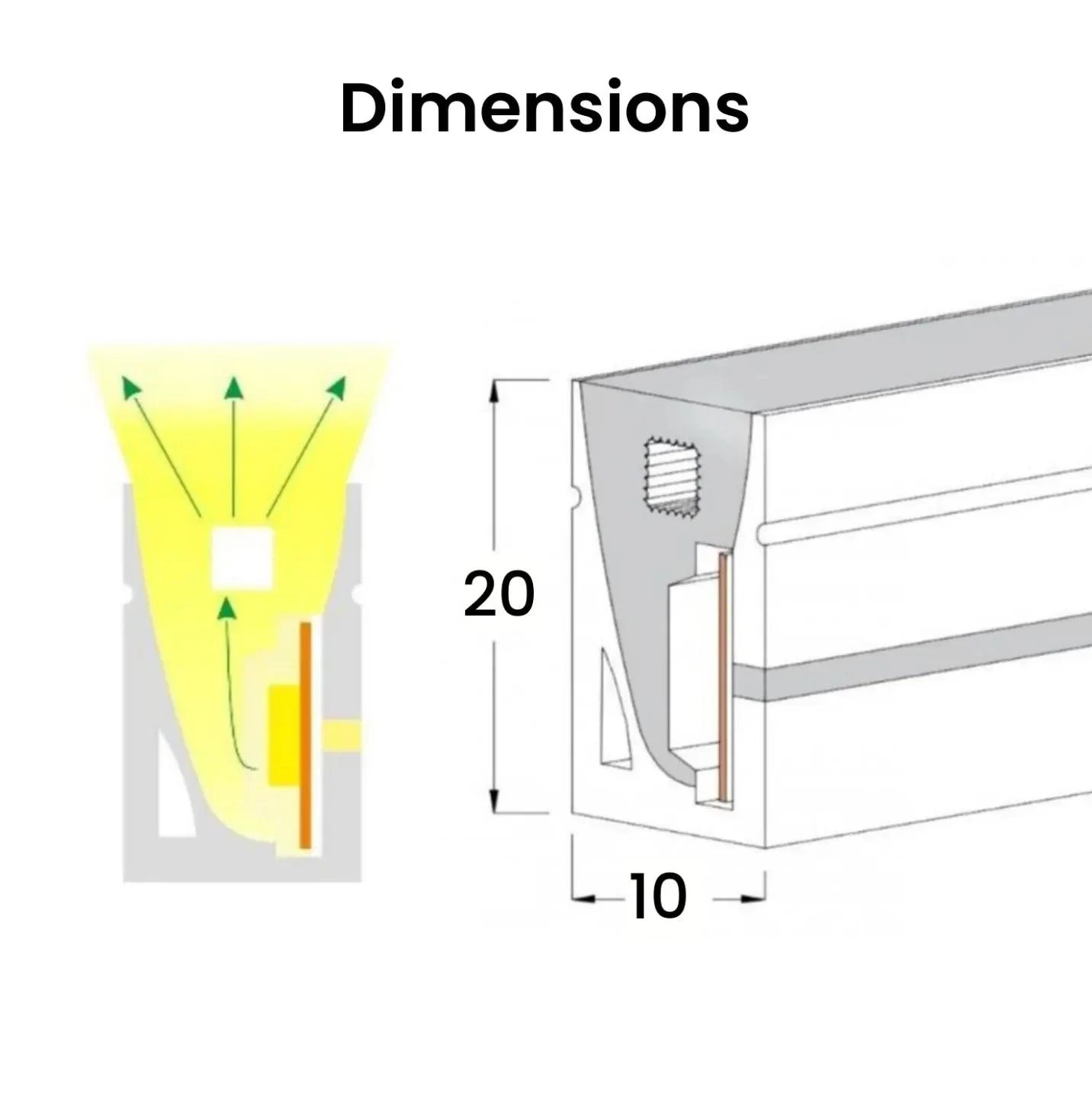

• LED Neon Flex Dimension: 10 x 20mm
• Power: 9 W/Meter
• Extension Lead: 3 Metre Extension Lead

Package Contents: LED Neon Flex

Power Supply Needed: DC 24V Power Supply

1 Metre Length : DC 9W
Upto 5 Metre Length : DC 48V 60W
Upto 10 Metre Length: DC 48V 120W
Upto 15 Metre Length: DC 48V 180W
Upto 20 Metre Length: DC 48V 250W
Upto 30 Metre Length: DC 48V 400W

Installation:

….
