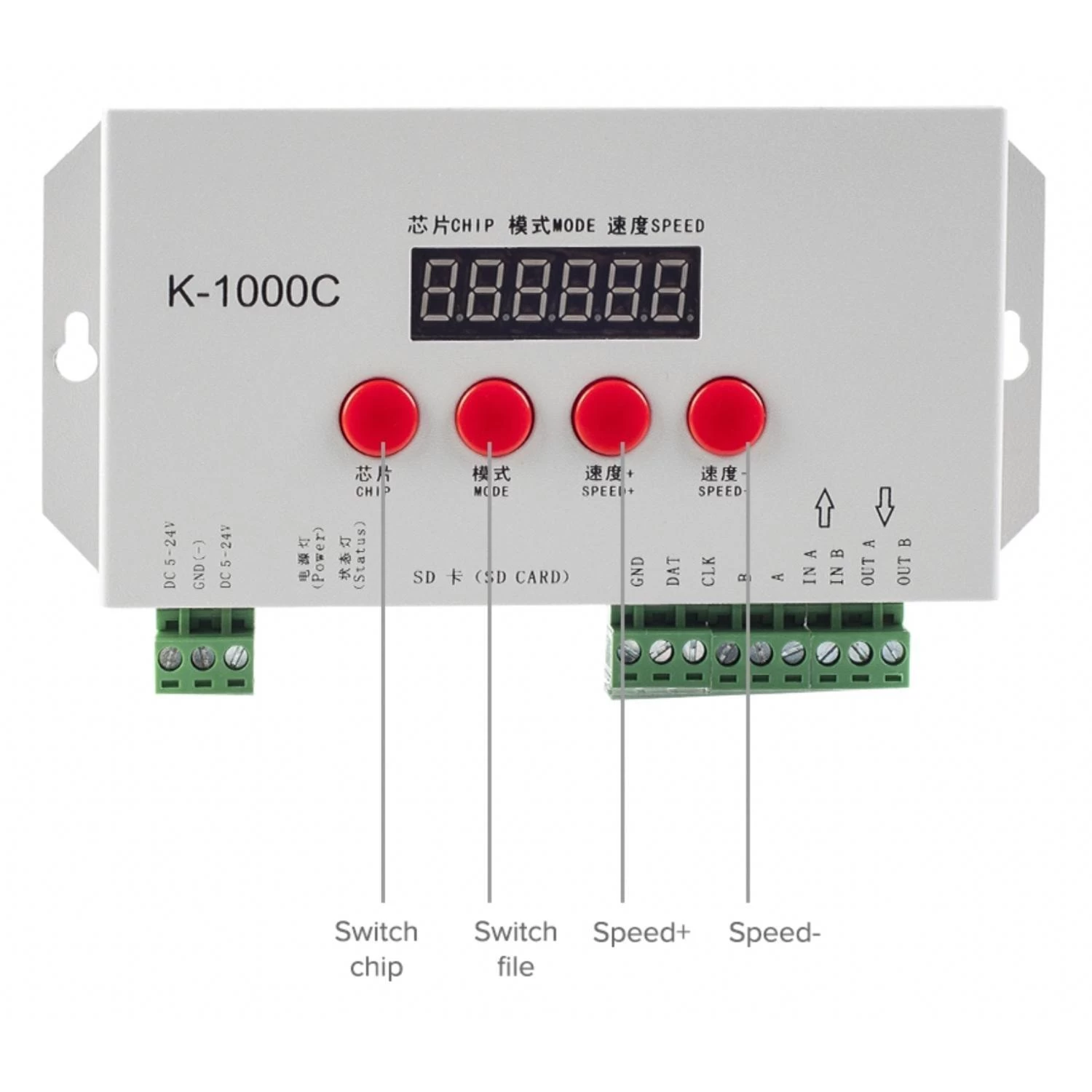

ATOM LED Digital RGB Pixel Controller K-1000C (T-1000S Updated) WS2812B WS2815 SK6812 WS2811 WS2801 LED Strip LED Matrix LED String 1536 Pixels Controller DC5-24V Addressable Programmable Controller With SD Card

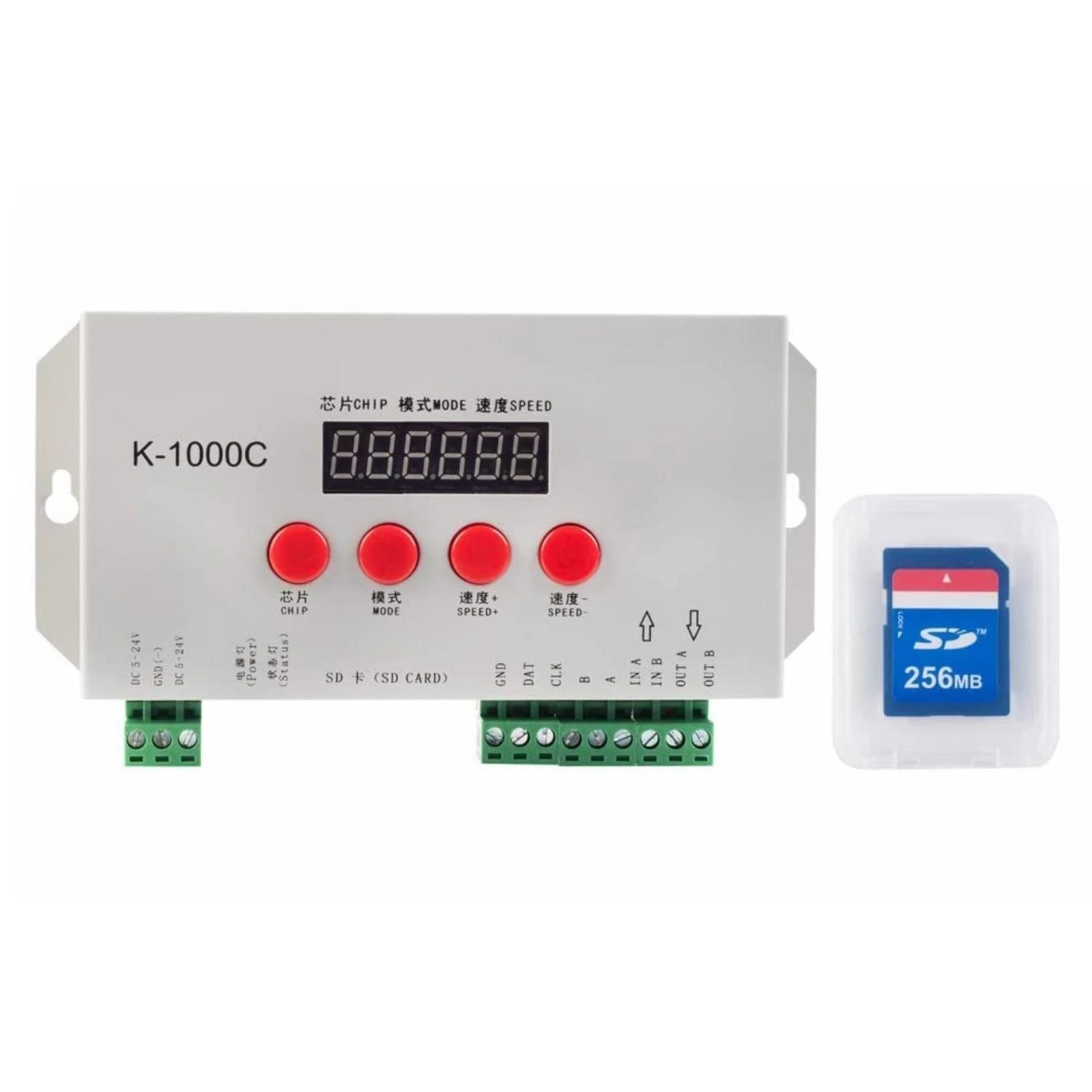

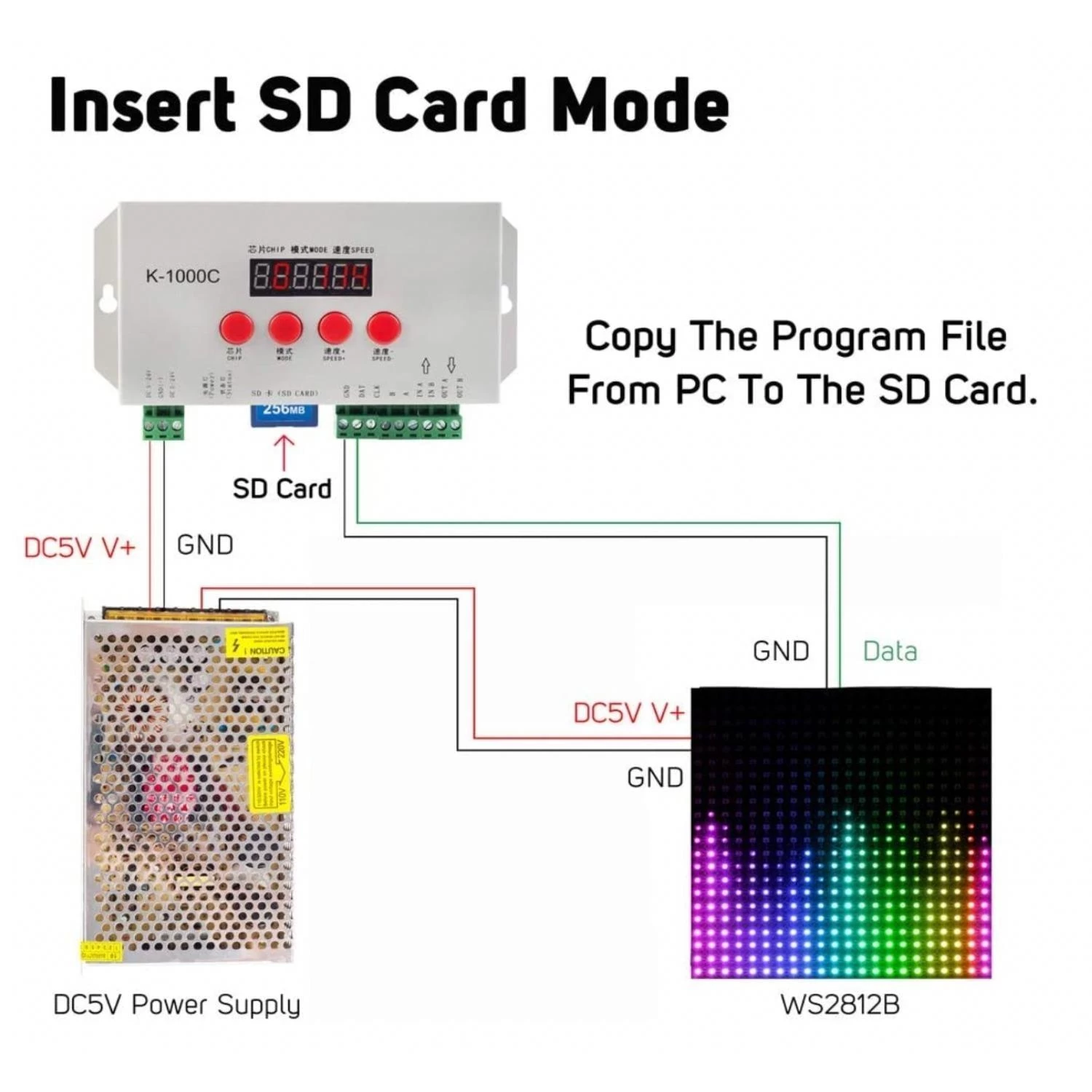

• Professional K-1000C controller an upgrade of T-1000S: It supports all the smart IC on the market. Including WS2812B, WS2811, WS2813, SK9822, SK6812RGBW, APA102C, WS2801,etc . All the dual data-led chip, data, and clock led chip, single data-led chip. It is suitable for engineering projects or customers’ DIY projects. Support SD card 128MB-32GB.

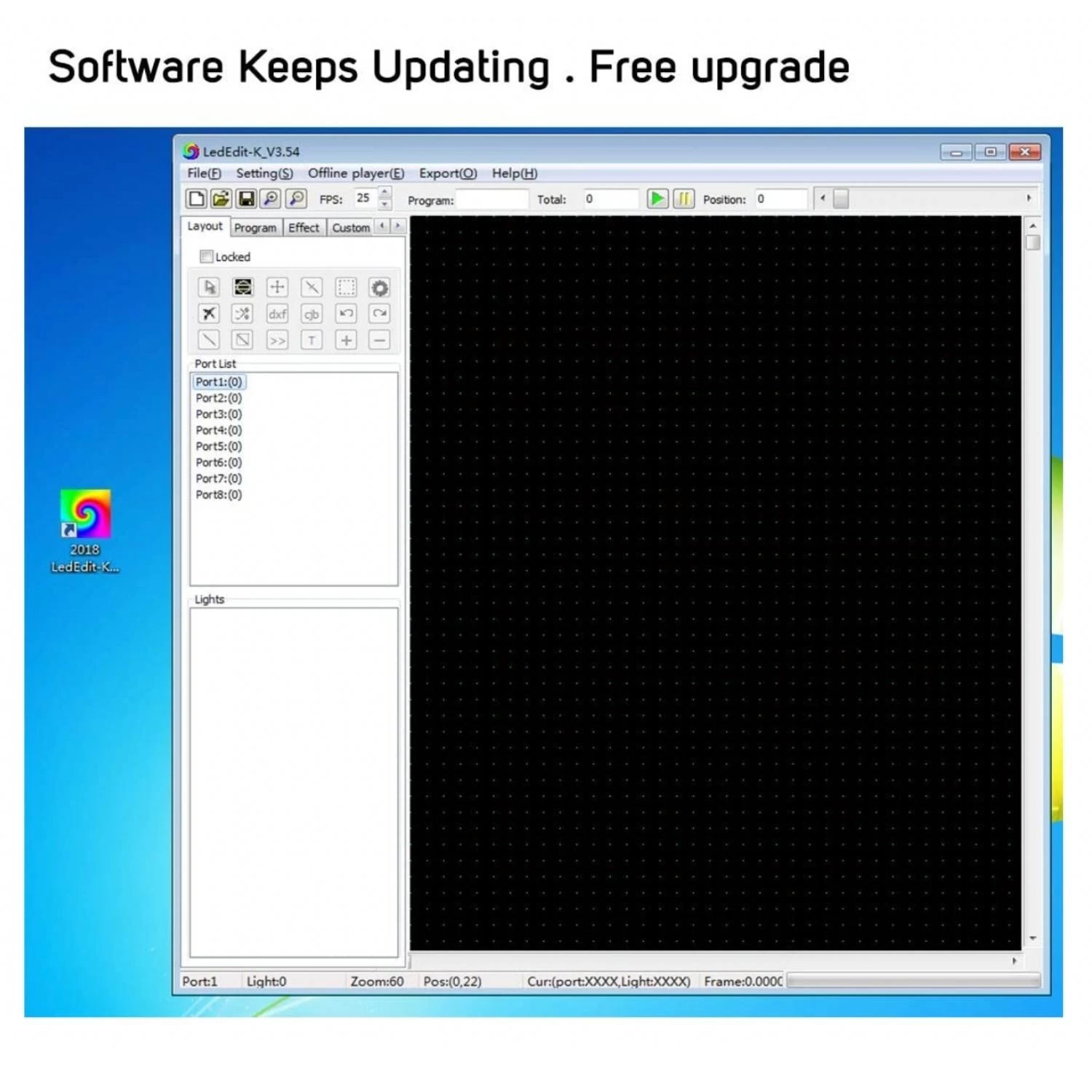

  Install LEDEDIT software on Windows computer. Can not work with Mac

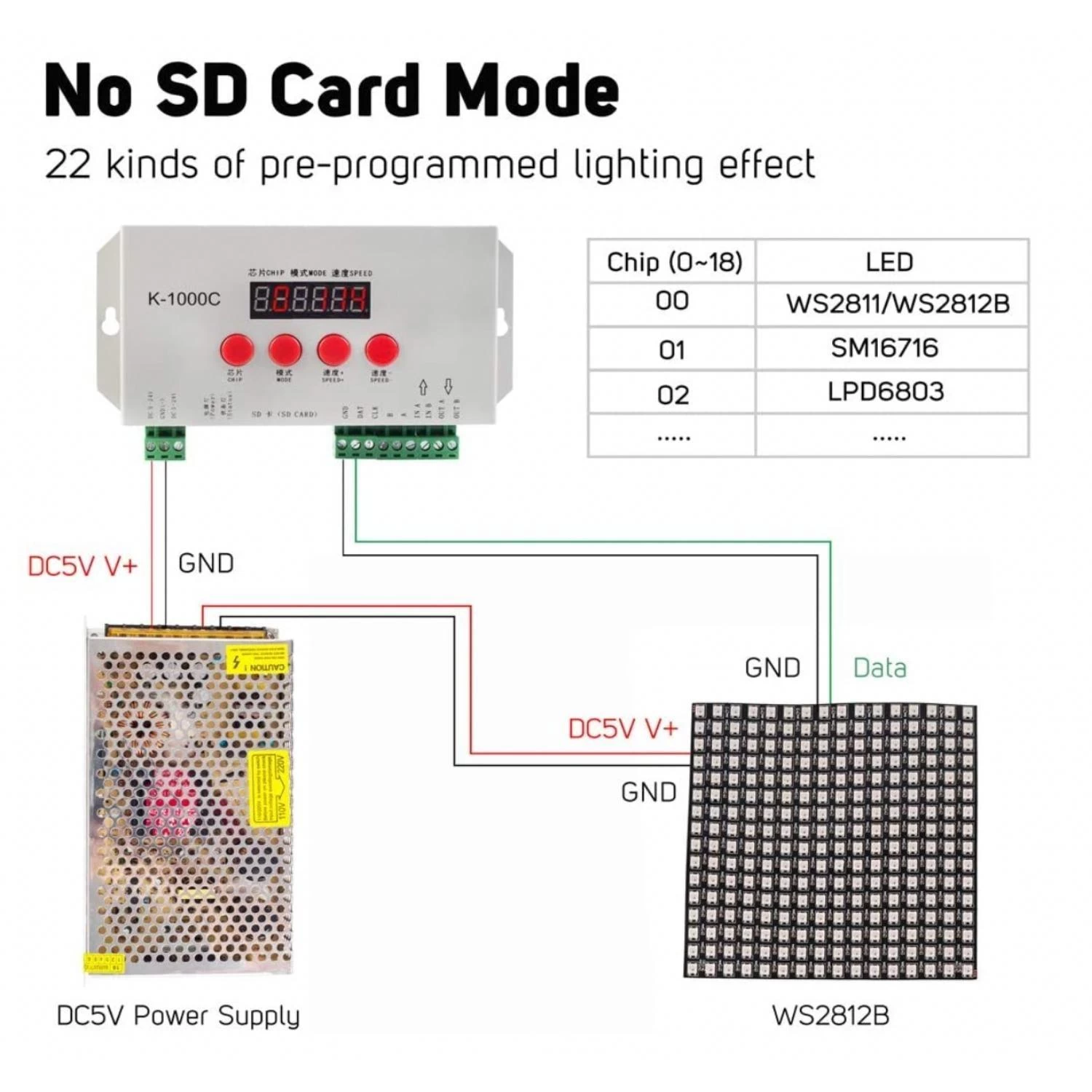

• Great for DIY projects: It supports LED strip/ LED matrix panel/Special-shaped/different data directions projects. Various special lighting effects. like effects-firework ,chasing,rainbow,scrolling text,single color,full color,running etc . There is a lighting effect library in the LEDEdit software. You also can use some videos/pictures as your own lighting effect library .

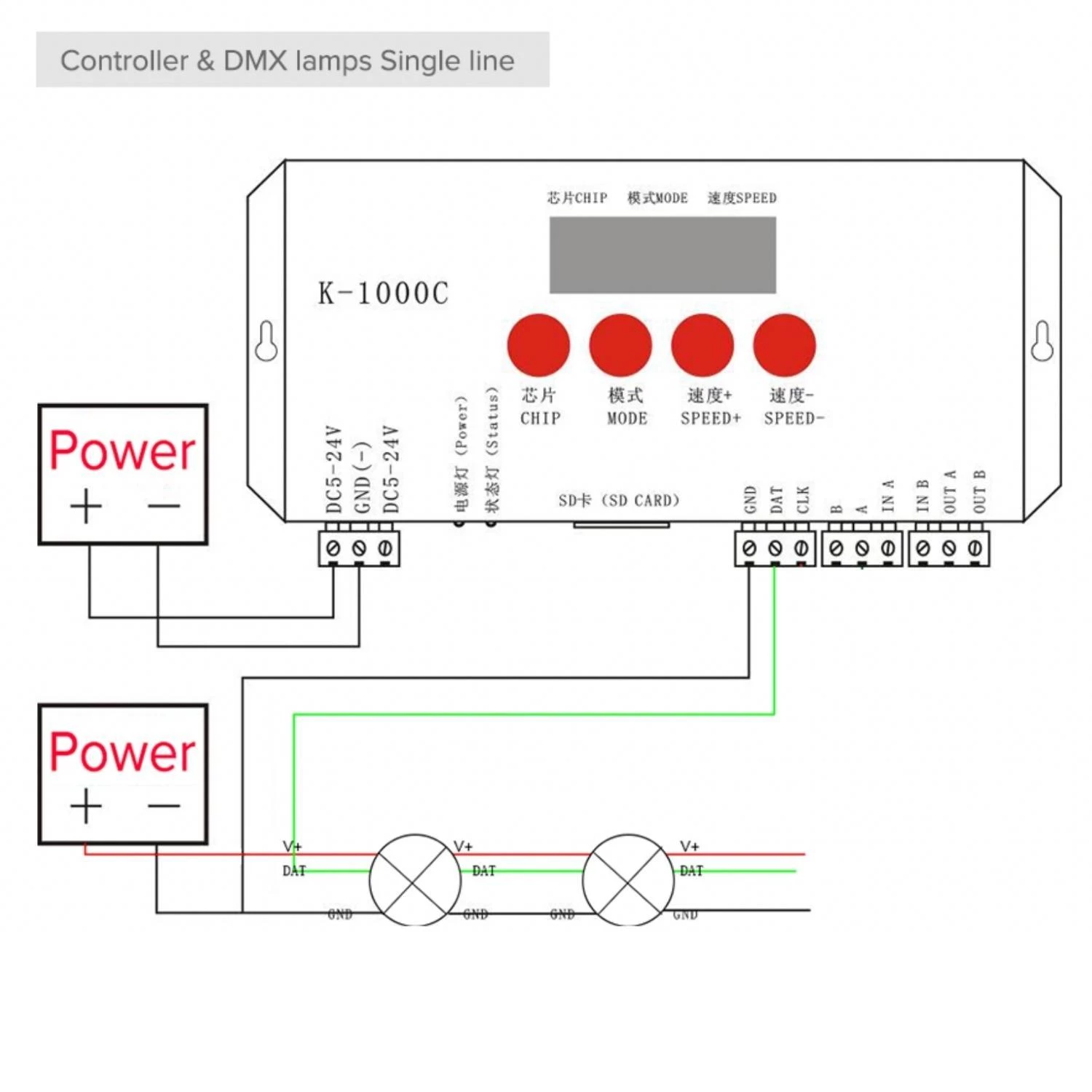

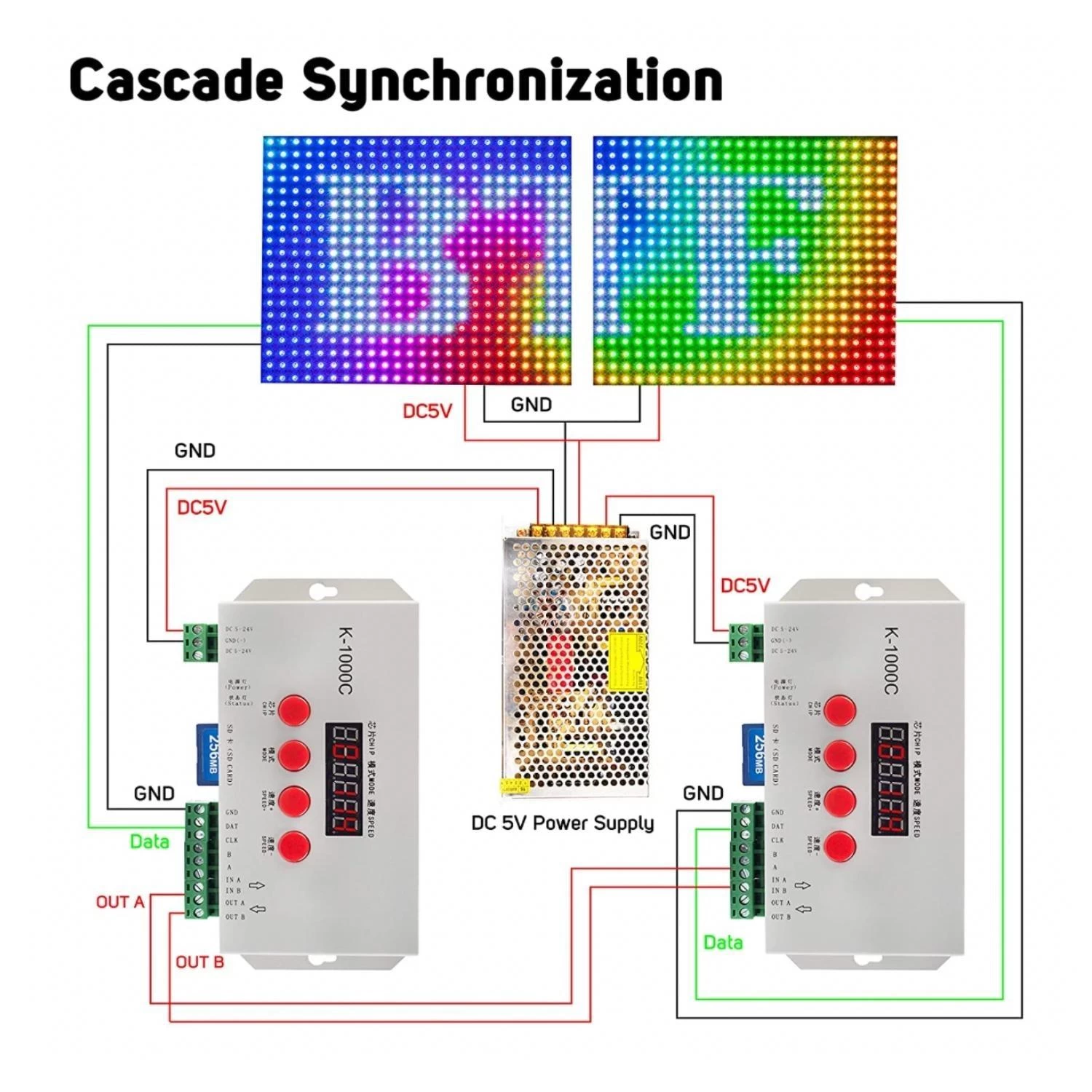

• Cascade Synchronization: There is one port on it, it can support 1536 pixels(DMX LED 512 pixels). Cascade Synchronization is for large pixel projects. We can cascade many controllers. There are K4000C controller max control 4000 pixels, K8000C controller max control 8000 pixels, if you need please contact us.

• Refresh Rate: 512 pixels 30 frames/second, 1024 point pixels 25 frames/second and 1536 pixels 15 frames/second. Max control WS2812B 1536 pixels. Usually, we recommend 1000-1500 pixels. More pixels will decrease the speed of data transmission.

For more information please feel free to get in touch.

Product Specification:

Power:	DC 5V to 24V
Number of Lights	2048
Memory Card	256 MB
Power Consumption	3W
Power Supply	5V to 24V
Material:	Copper
Data Transmission Port	3 Pin
Colour	Silver
Dimensions	5.12 x 3.94 x 0.98 inches
Certifications:	CE
Voltage:	5V to 24V
Memory Card	Included
Weight	200 grams
Brand	ATOM LED
IP Rating	IP 20

….
