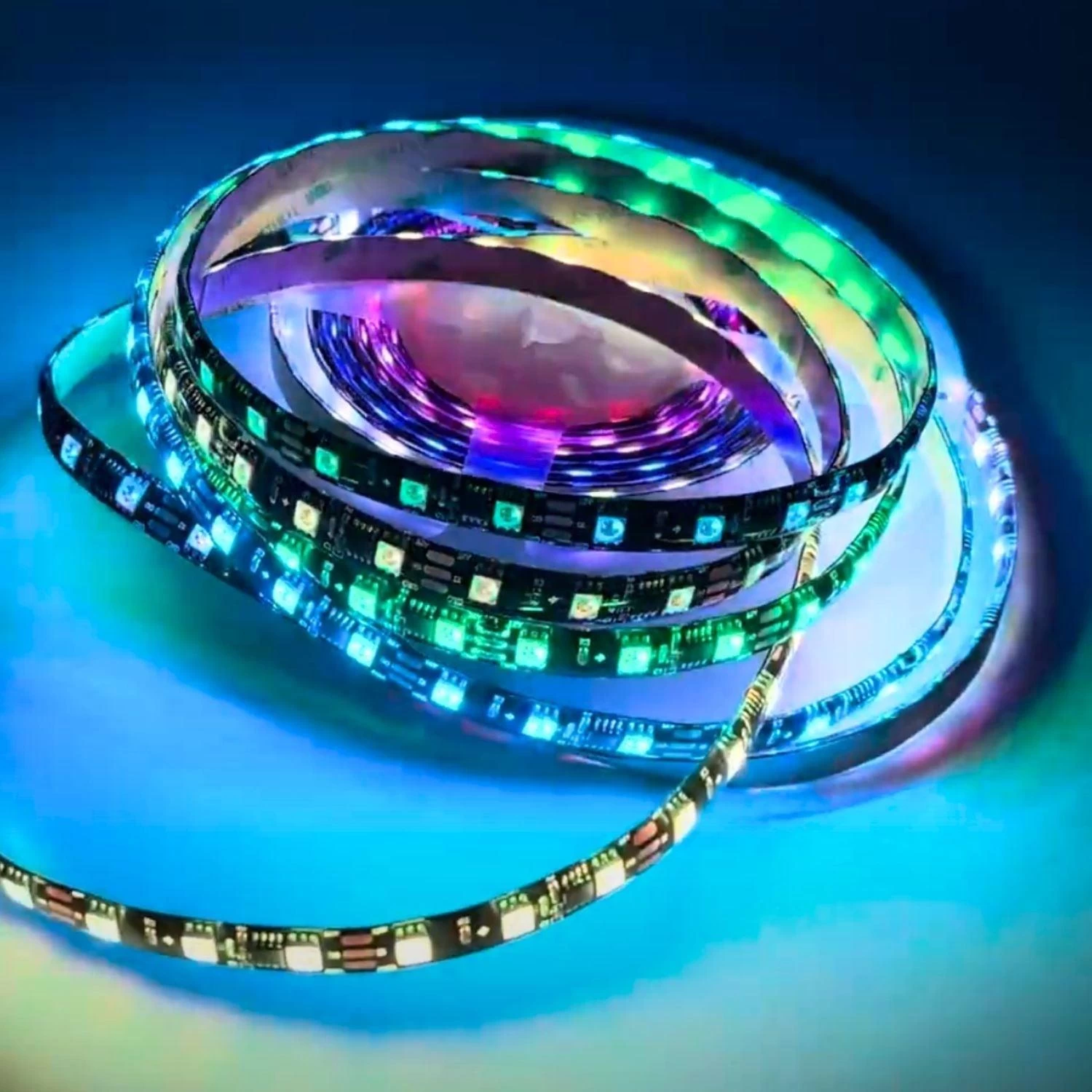

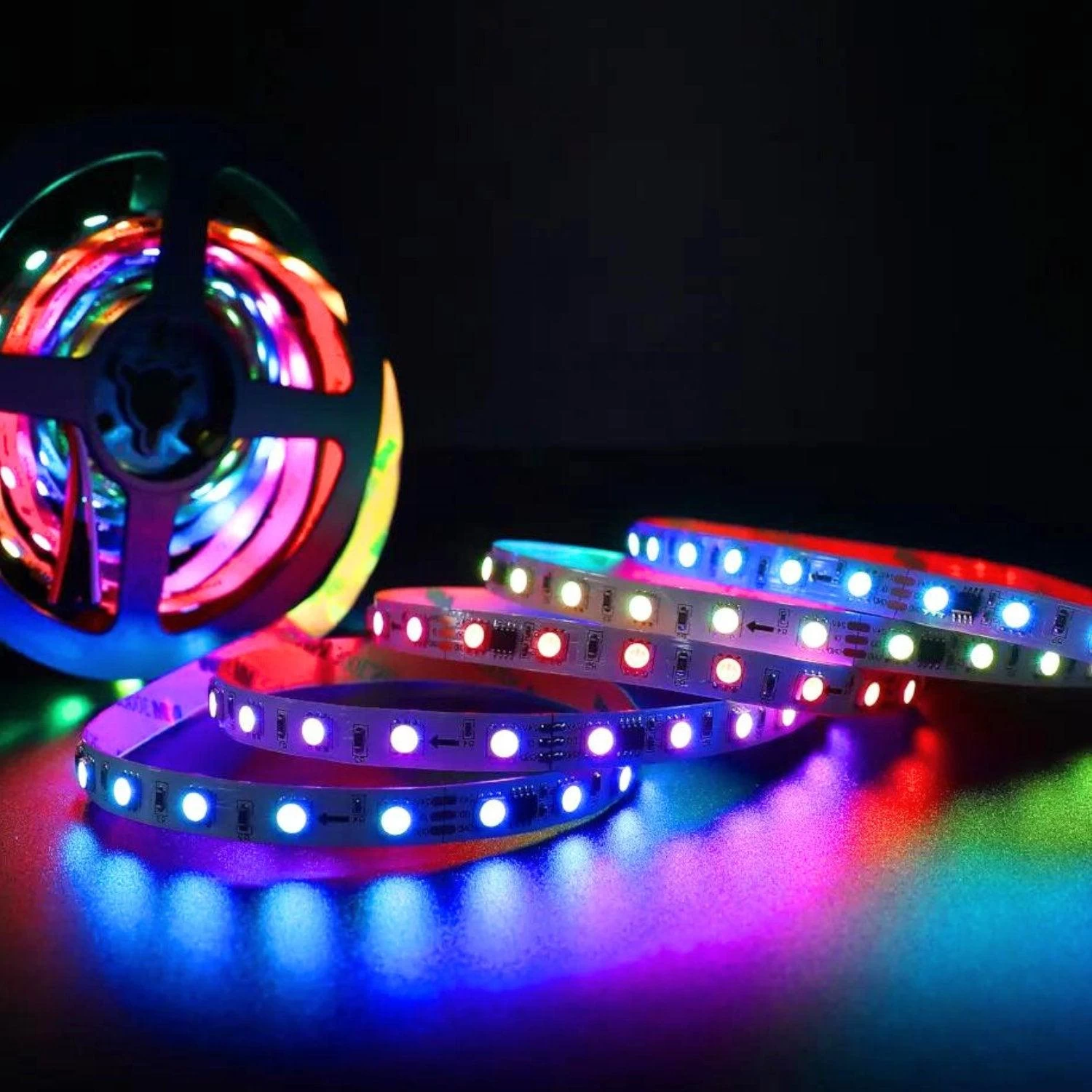

ATOM LED Digital Pixel RGB Strip 12V WS2811 Addressable 5050 60LED/m IP20 5 Metre

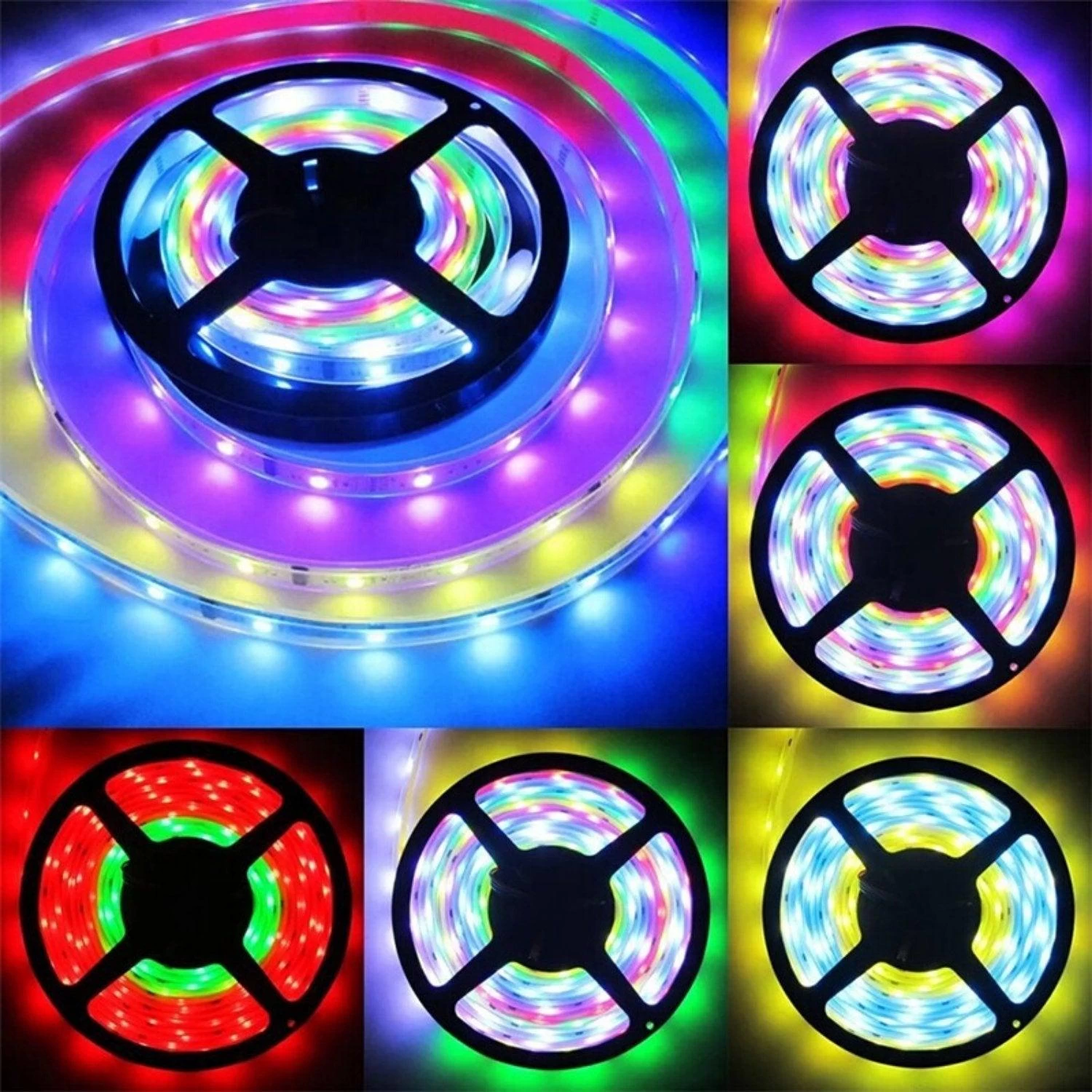

The 5m 12V DC SPI 60LED/m RGBIC Digital LED Strip is called “Digital” because you can control the color of the LEDs independently. Thanks to the Digital SPI control, the strip can perform tracking effects, flash, and light groups of LEDs independently, providing a more complete range of effects and colors than conventional RGB strips.

This 5m strip uses high-brightness 5050 technology LEDs and a WS2811 control chip. The Digital Pixel RGB LED Strip has 10 pixels per meter, and it is possible to control groups of 3 LEDs independently via the SPI interface (Serial Peripheral Interface).

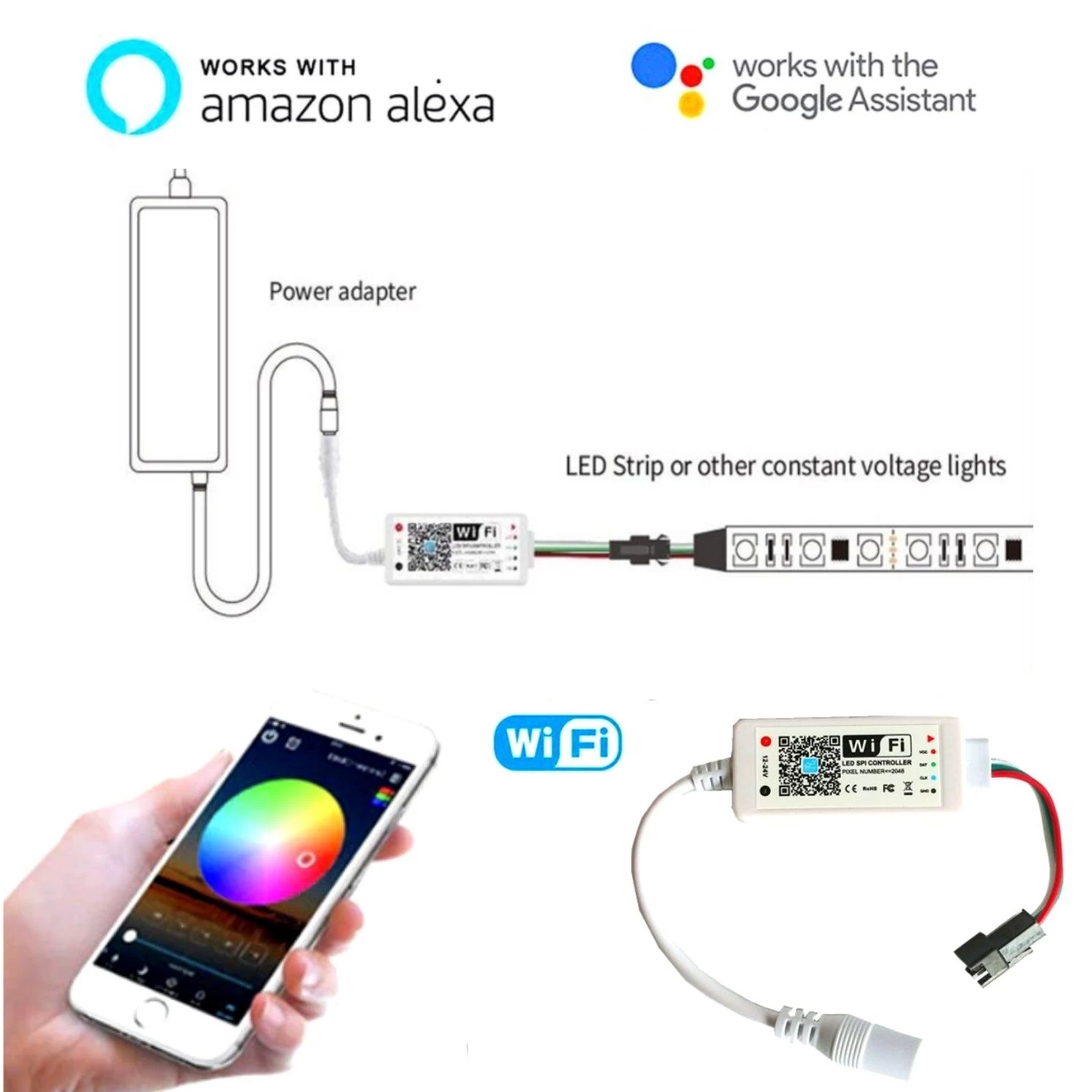

To get the most out of this strip, you need a suitable digital controller. In the accessories section, you can find a digital SPI controller with more than 120 color presets, so no programming is required. Simply connect the power supply and enjoy over 120 different color modes.

The digital strip can b configured in two pin orders: RGB and BGR. Our digital strip is configured with BGR, and all digital controllers follow the BGR order. It’s important to use a driver compatible with this pin order to avoid incorrect color display.

With its extra-flat design, this LED lighting achieves an ideal effect for a variety of projects. The versatility of the SPI 12V DC 60LED/m Digital RGB LED Strip makes it ideal for applications such as accent lighting, decorative lighting, or wayfinding. It’s particularly useful in festive spaces like concert halls, discotheques, facades, pergolas, corridors, showcases, and shelves.

You are going to need a digital pixel SPI Controller to use the digital pixel rgb strip.

Specification:

• Working Voltage: DC 12V
• Light Colour: RGB
• LEDs: RGB WS2811
• Pixels: 10 pixels per metre
• Cutting: 5cm
• Continuous run: 5 Metre

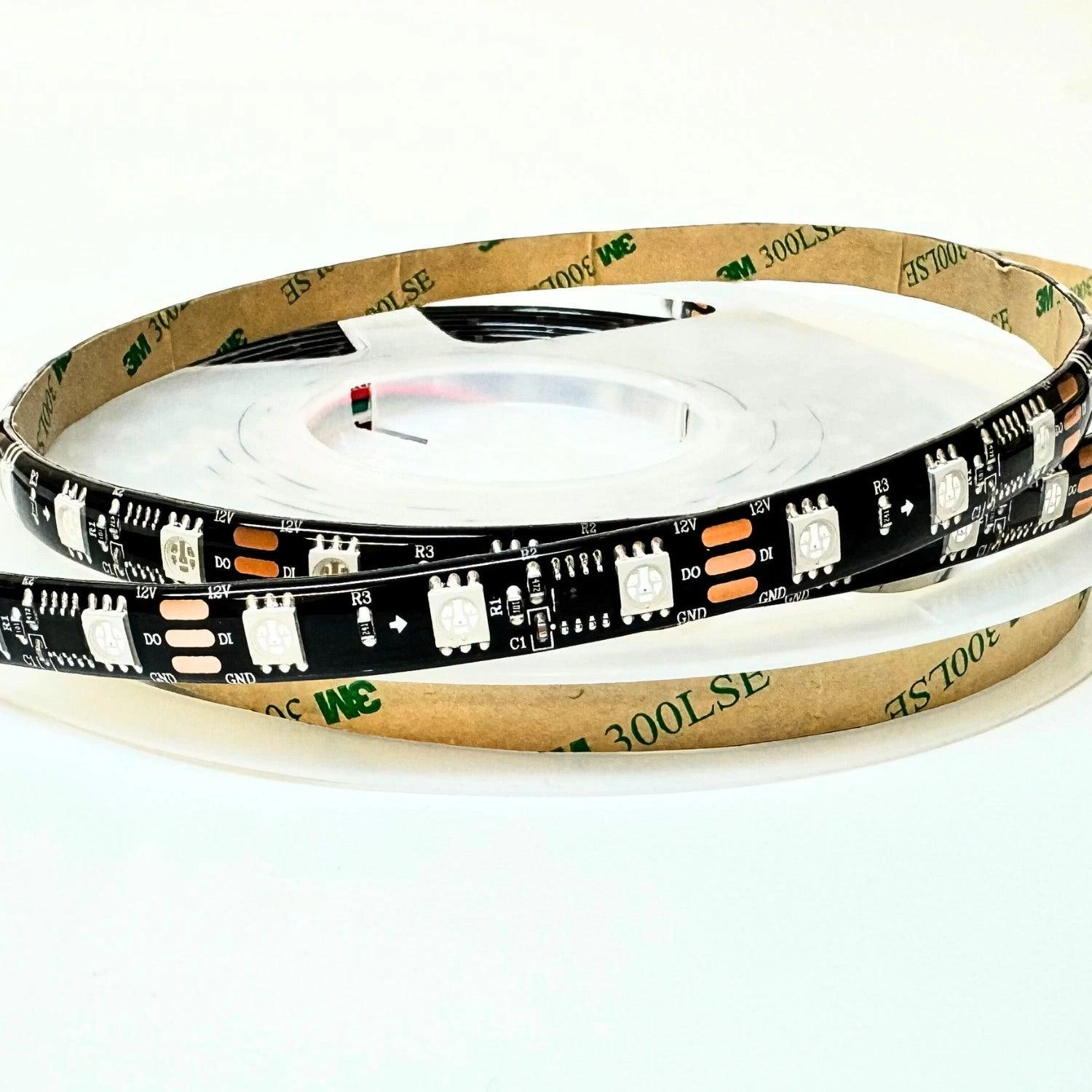

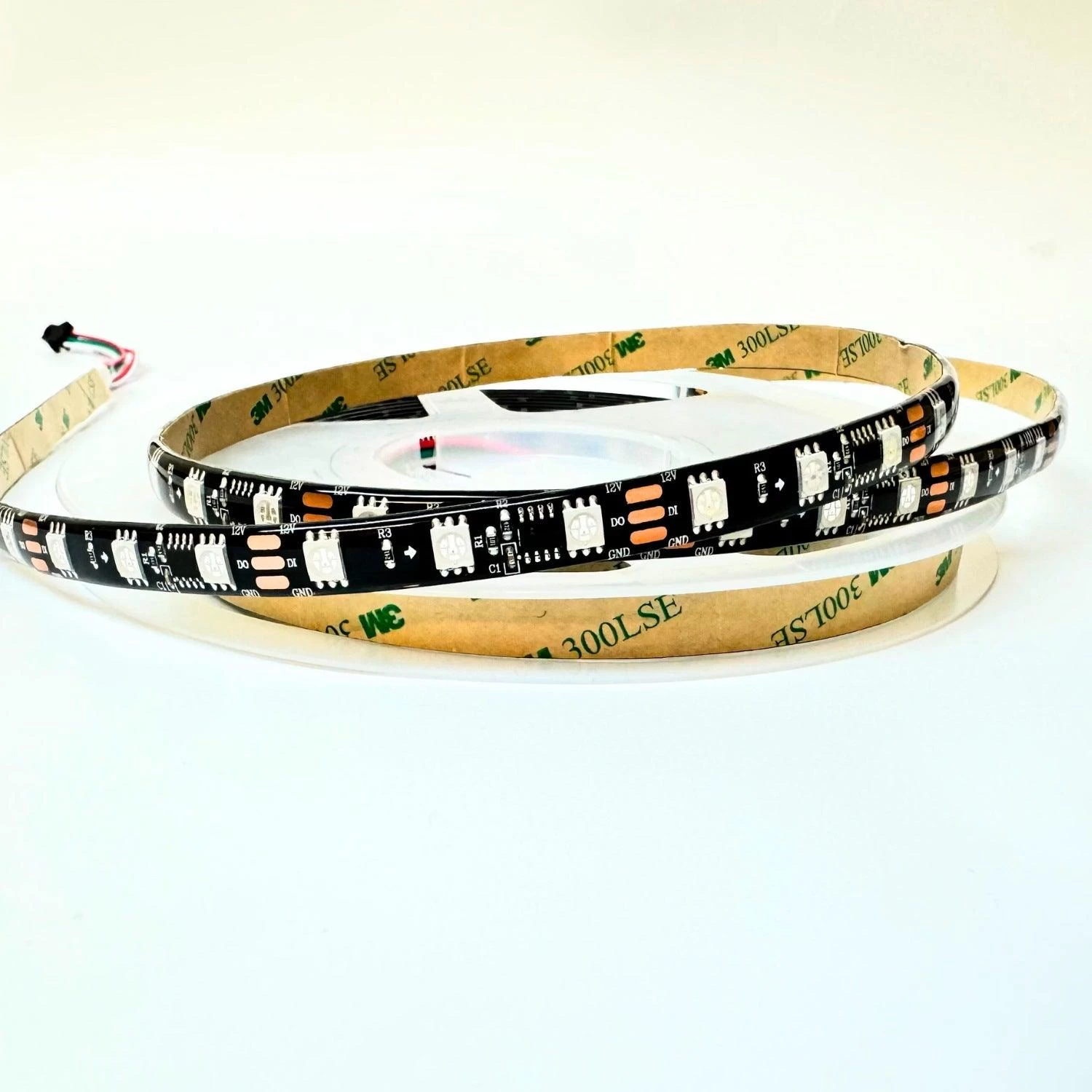

• Strip Backing: Adhesive
• Waterproof Rating: IP20 non-waterproof
• Working Temperature: -30°C to 50°C
• Dimension: 10mm wide
• Power: 14 W/Meter

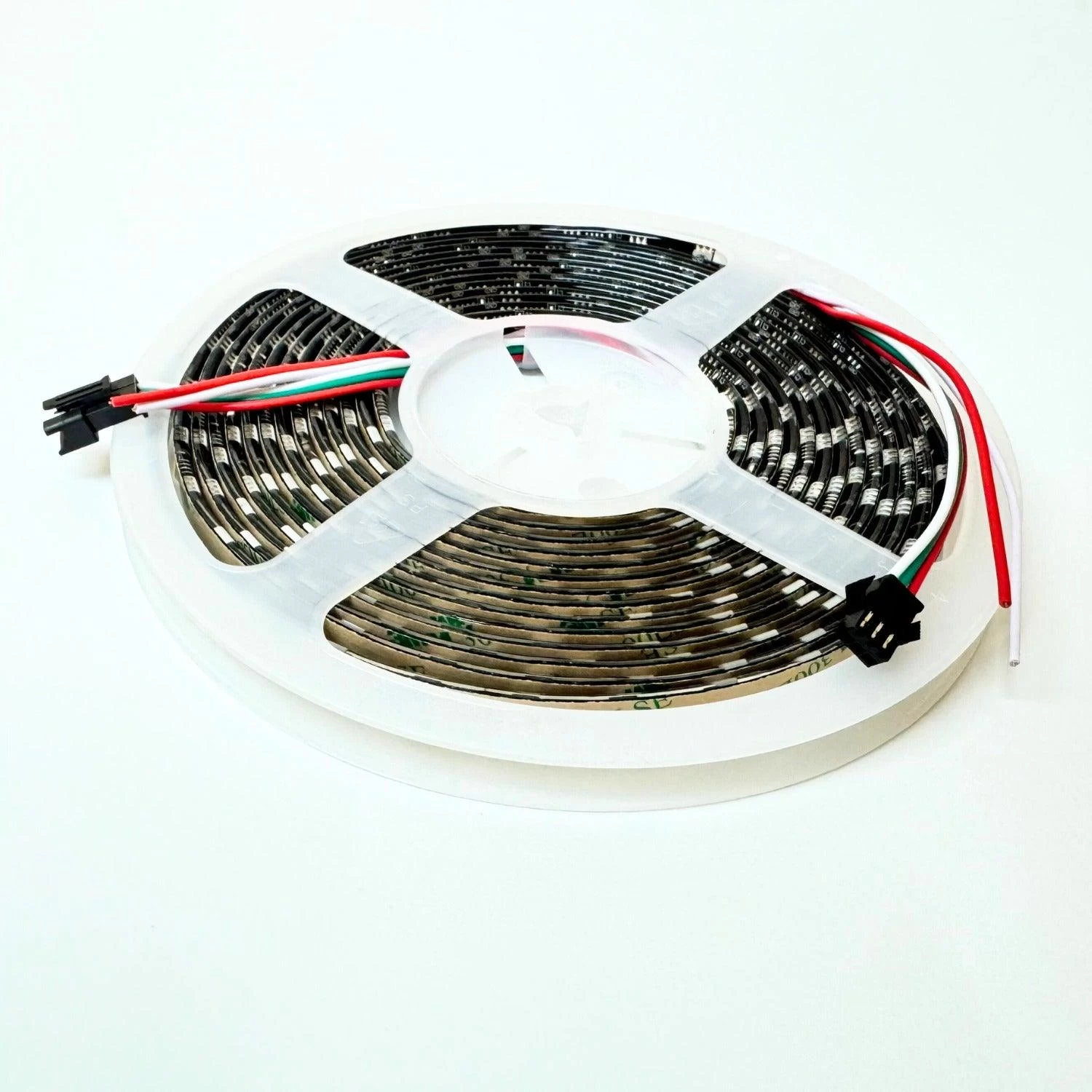

• Extension Lead: 20cm Extension Lead
• Warranty: 3 years



….
